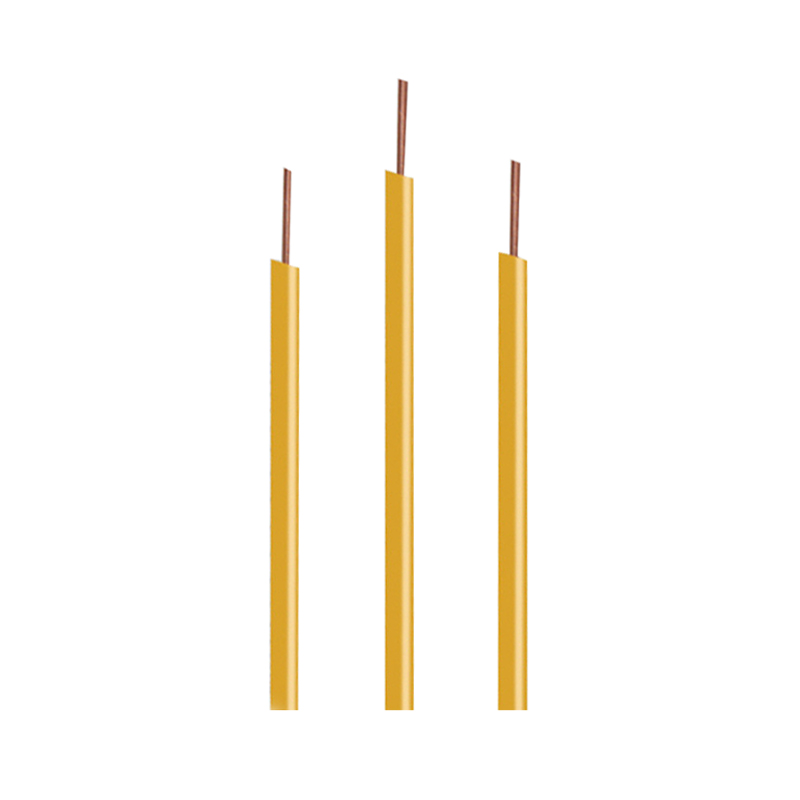

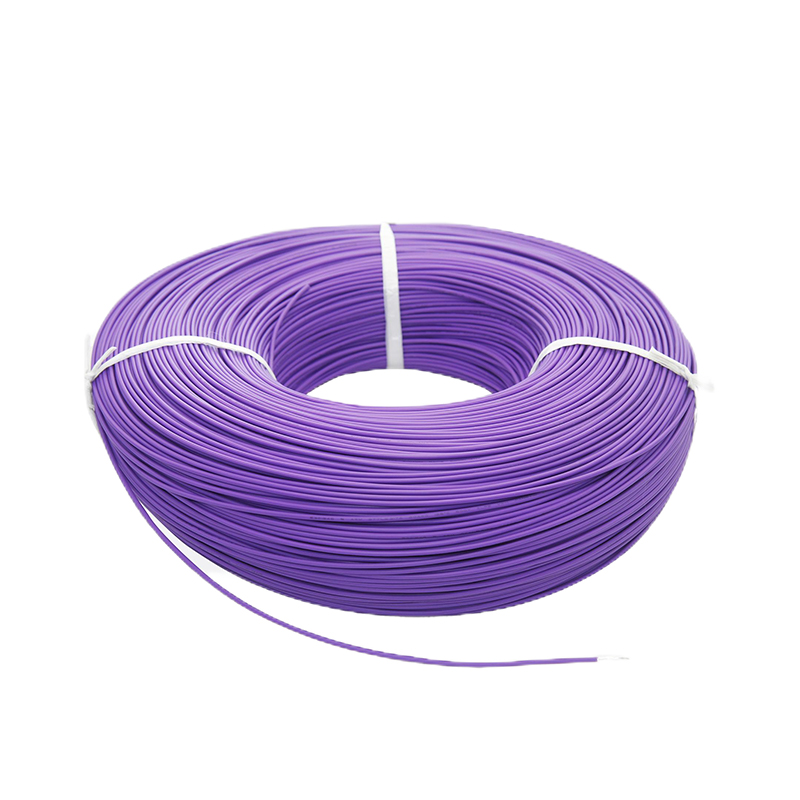

AVX/AEX Japanese Automotive Wire

·Rated Temperature: 100℃/120℃
·Conductor: Stranded 0.5~8mm² bare copper
·Insulation: XLPVC/XLPE insulation, RoHS compliant
·Passes flame retardant test, uses standard insulation thickness, easy to cut and strip
·Used for automotive internal wiring
·Full Name and Standard: AEX is a cross-linked polyethylene insulated heat-resistant low-voltage wire for automotive applications, conforming to JASO D625 standard.
·Structure: Its copper core is annealed soft copper, and the insulation material is cross-linked polyethylene heat-resistant material.
·Performance Characteristics: AEX automotive wire has excellent oil resistance, corrosion resistance, and abrasion resistance, while also possessing excellent high and low temperature resistance, with a heat resistance rating of 120℃. Compared to AVX automotive wire, AEX wire has superior heat resistance.
·Typical Applications: Primarily used in low-voltage circuit wiring in automobiles (four-wheel, two-wheel) and other applications requiring heat resistance (120℃).
