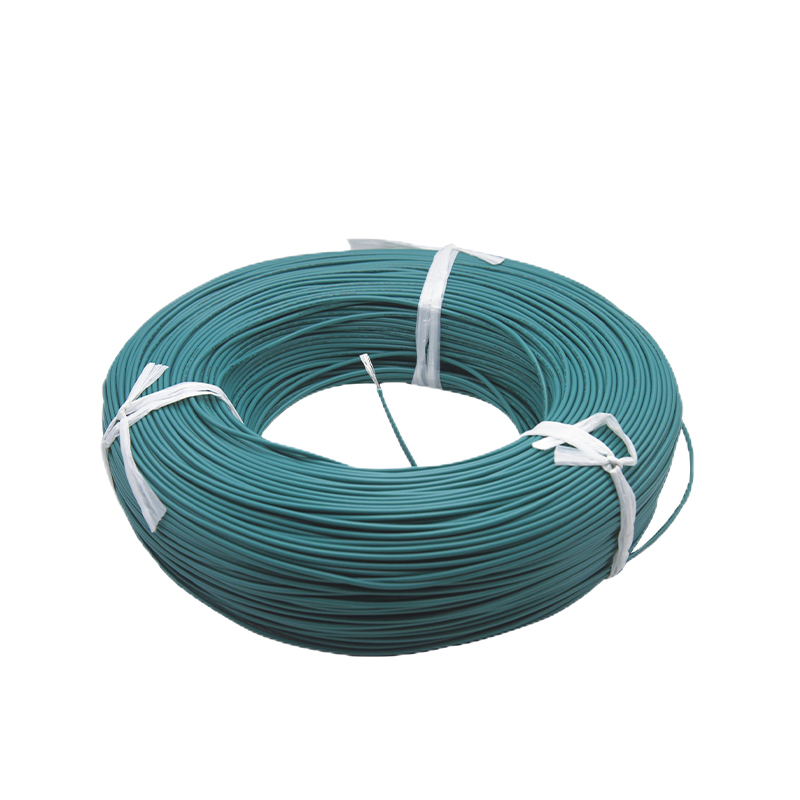

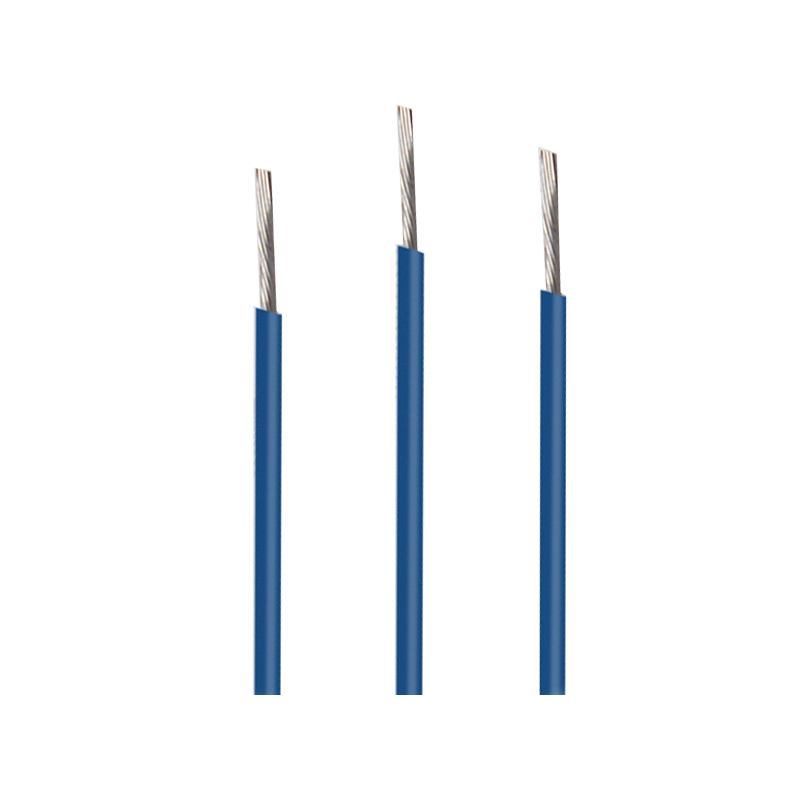

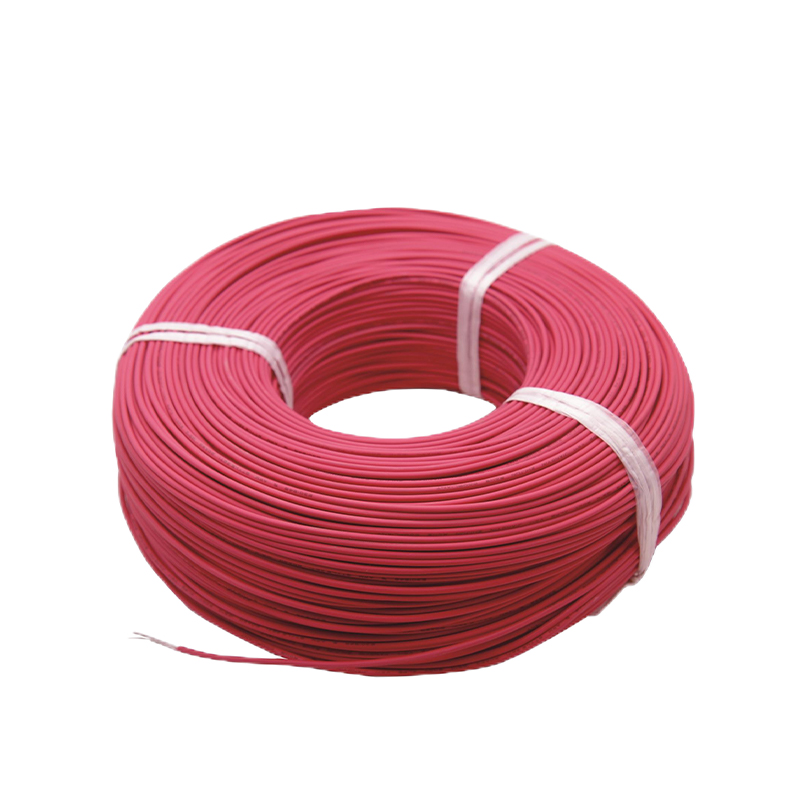

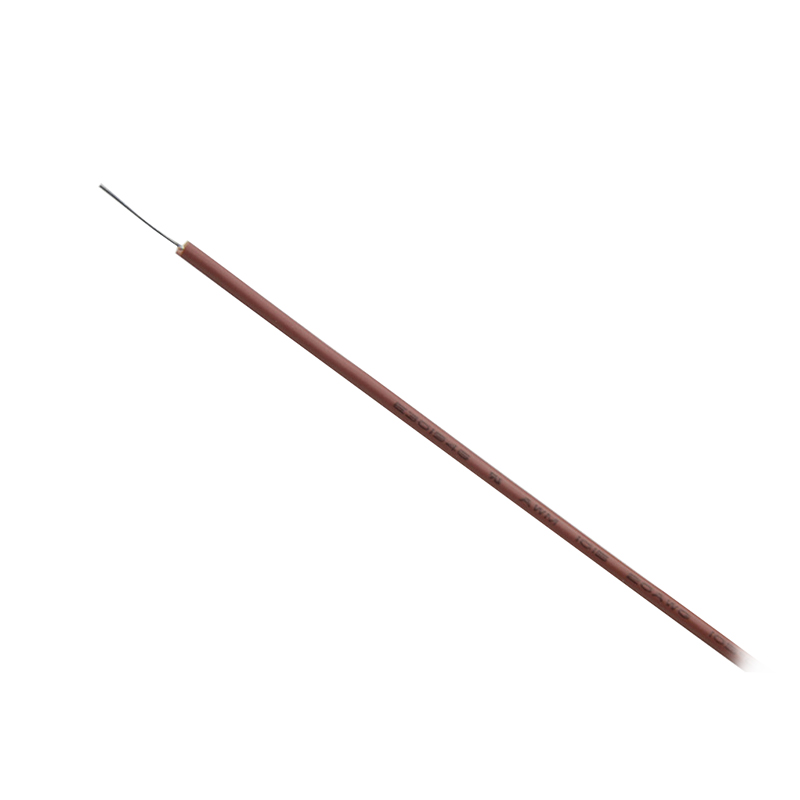

QVR/QVR-105 National Standard Automotive Wire

·Rated Temperature: 70℃/105℃
·Conductor: Stranded 0.2~120mm² tin-plated or bare copper
·Insulation: PVC insulation, RoHS compliant
·Passes flame retardant test, uses standard insulation thickness, easy to cut and strip
·Used for automotive internal wiring
·QVR-105 is a national standard automotive heat-resistant PVC insulated low-voltage wire conforming to JB/T 8139-1999. Its core advantages are 105℃ heat resistance, flexibility, oil resistance, and environmentally friendly flame retardancy, making it suitable for low-voltage, high-temperature wiring in automotive interiors.
·Appearance: Insulation color is single-color or two-color, customizable upon request.
·Key Performance Characteristics
Heat Resistance: Long-term operating temperature reaches 105℃, superior to ordinary QVR wire (70℃), suitable for high-temperature areas such as engine compartments.
·Typical Applications
Mainly used in low-voltage electrical circuits inside automobiles, such as instrument wiring, electrical components in high-temperature areas of the engine compartment, lights, sensors, etc., and can also be used for internal wiring of electrical equipment such as machine tools.
