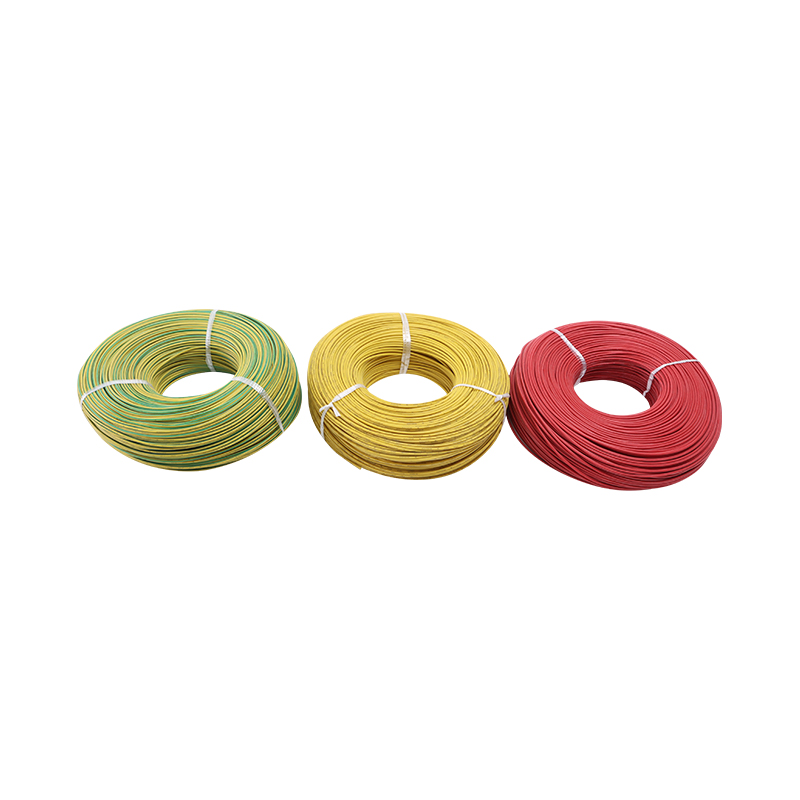

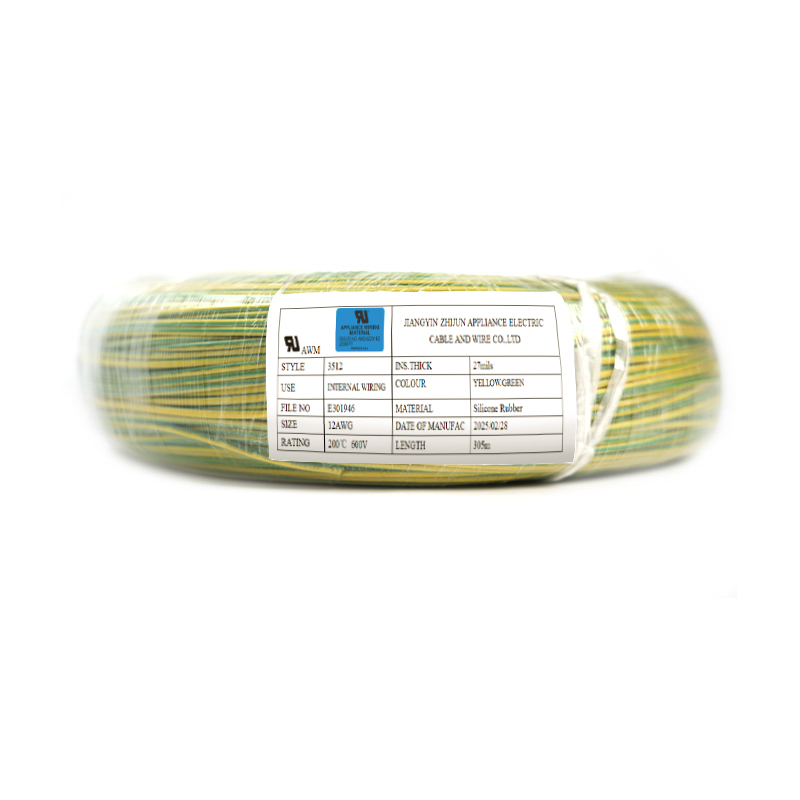

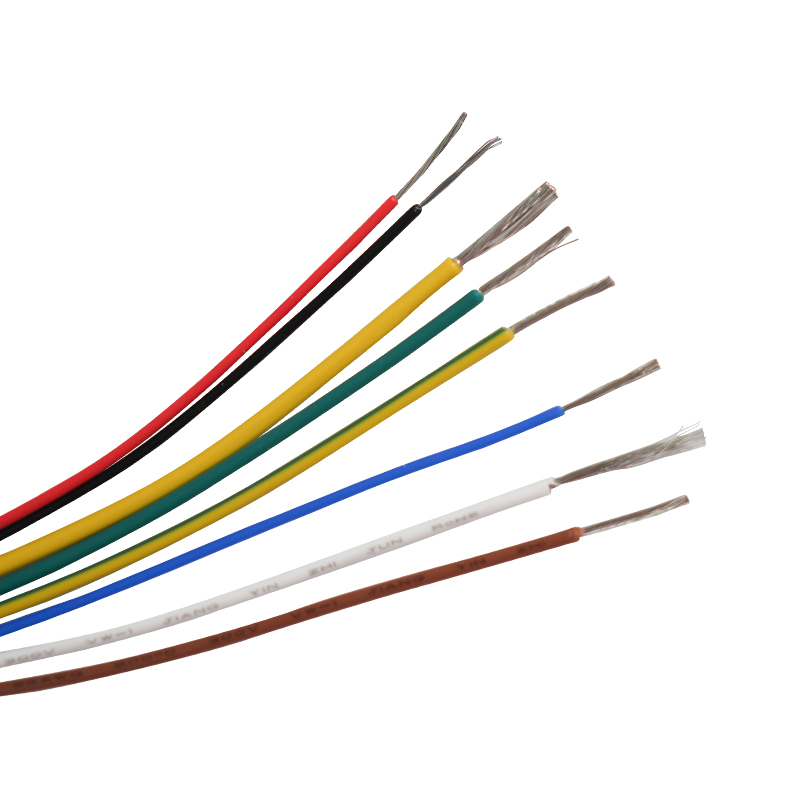

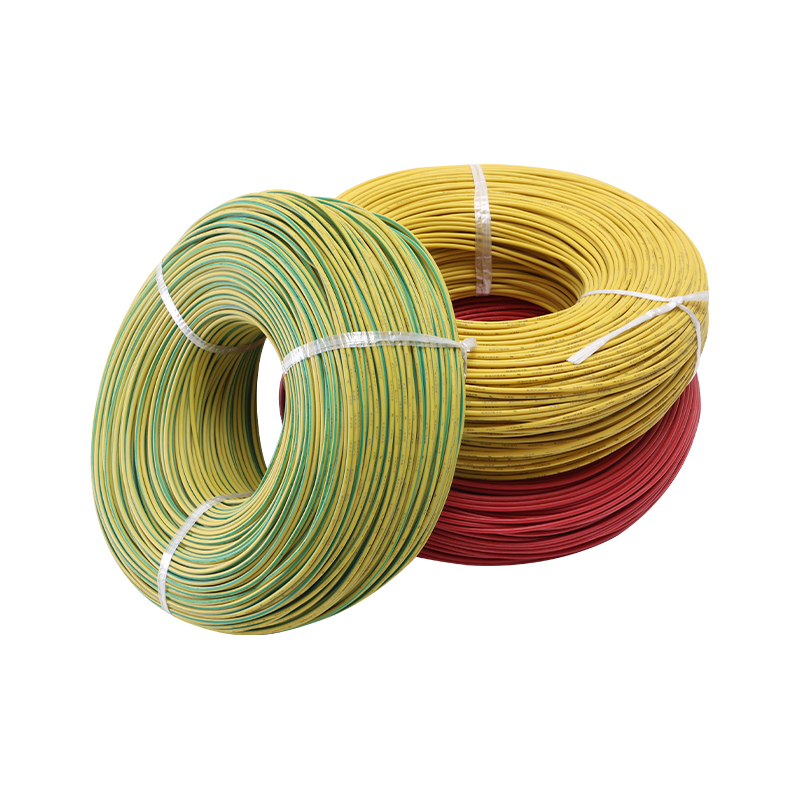

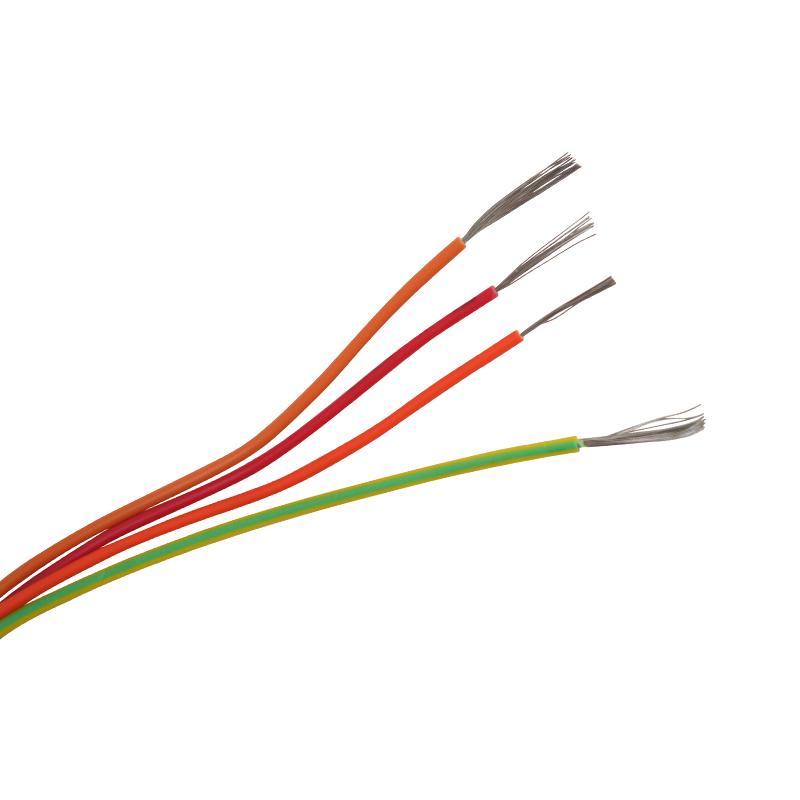

UL3512 UL Certified 10mm² Heat Resistant Silicone Wire

UL3512 certification standard: UL758, certification number: E301946 Rated voltage: 600V, rated temperature: -60°C~+200°C, conductors are made of bare copper, tinned, silver-plated or nickel-plated copper wire, and the insulation layer is silicone rubber. It has good electrical insulation performance and is suitable for various electrical internal wiring. It is widely used in electrical equipment, household appliances, industrial equipment, lighting equipment, electric heating appliances and other fields in high temperature environments. Specifications: 0.5mm²~240mm²

Contact Us
PREV：UL3139 Highly Flexible Silicone Battery High Temperature Resistant Connecting WireNEXT：UL3530 High Temperature Resistant Silicone Soft Installation Line
Parameter
Spec.
（mm²）		 Conductor Insulation Wire diameter Max
resistance
20℃(Ω/KM)
Structure
（mm）		 Diameter
（mm）		 Nominal
thickness
（mm）		 Min
thickness
（mm）		 Nominal
（mm）		 Tolerance
（mm）
0.5 16/0.20 0.95 0.76 0.69 2.5 ±0.10 40.1
0.75 24/0.20 1.15 0.76 0.69 2.7 ±0.15 26.7
1 32/0.20 1.34 0.76 0.69 2.9 ±0.15 20
1.5 30/0.25 1.6 0.76 0.69 3.2 ±0.15 13.7
2 41/0.25 1.9 0.76 0.69 3.5 ±0.20 9.9
2.5 49/0.25 2 0.76 0.69 3.6 ±0.20 8.21
4 56/0.30 2.7 0.76 0.69 4.3 ±0.20 5.09
6 84/0.30 3.3 1.14 1.03 5.6 ±0.20 3.39
8 70/0.40 1.14 1.03 6.65 +0.3
-0.2		 3.39
10 84/0.40 4.6 1.52 1.37 7.7 +0.3
-0.2		 1.95
16 126/0.40 5.8 1.52 1.37 8.9 +0.3
-0.2		 1.24
25 196/0.40 7.3 1.52 1.37 10.4 +0.3
-0.2		 0.795
35 276/0.40 8.6 1.52 1.37 11.7 +0.3
-0.2		 0.565
50 396/0.40 10.7 2 1.83 14.7 +0.4
-0.2		 0.393
70 360/0.50 12.4 2 1.83 16.4 +0.4
-0.2		 0.277
95 475/0.50 14.5 2.4 1.83 18.5 +0.4
-0.2		 0.21
120 608/0.50 16 2.4 2.16 20.8 +0.4
-0.2		 0.164
150 756/0.50 18 2.4 2.16 22.8 +0.6
-0.3		 0.132
185 925/0.50 20 2.4 2.16 24.8 +0.6
-0.3		 0.108
240 1221/0.50 23 2.4 2.16 27.8 +0.6
-0.3		 0.0817
 Please contact customer service to provide product specifications.
