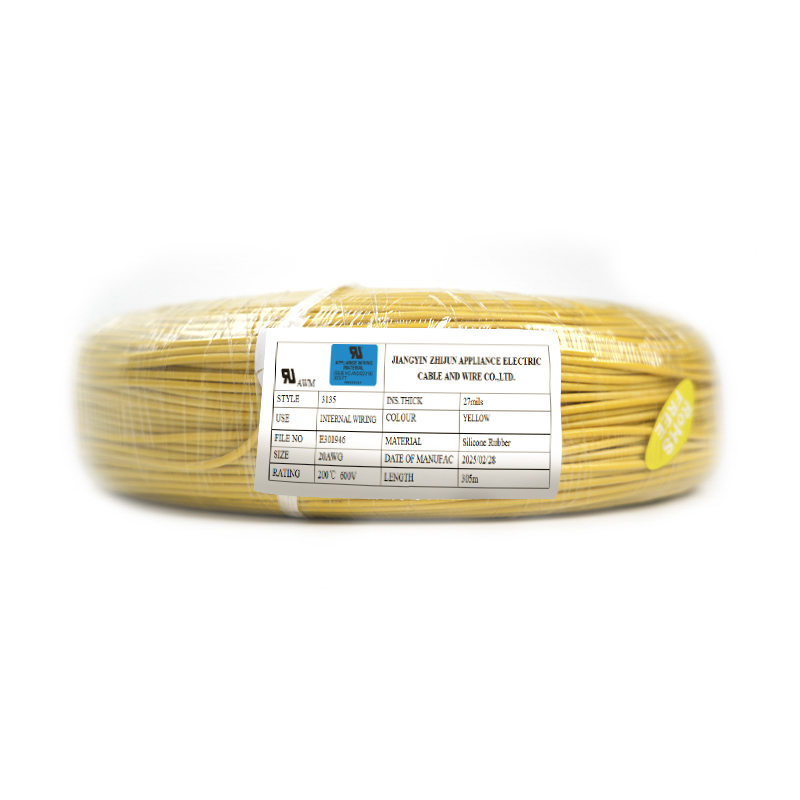

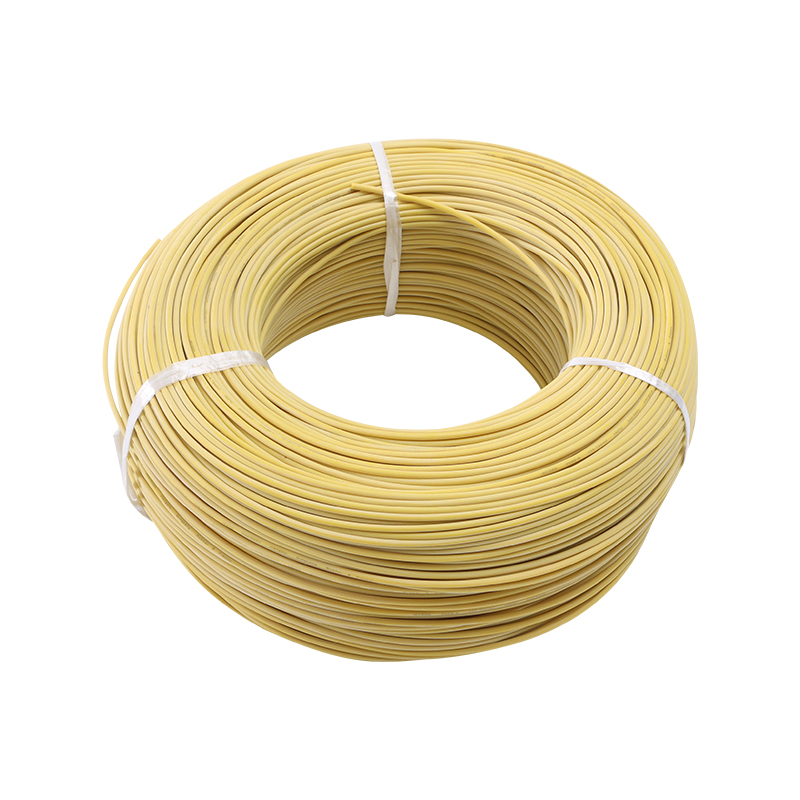

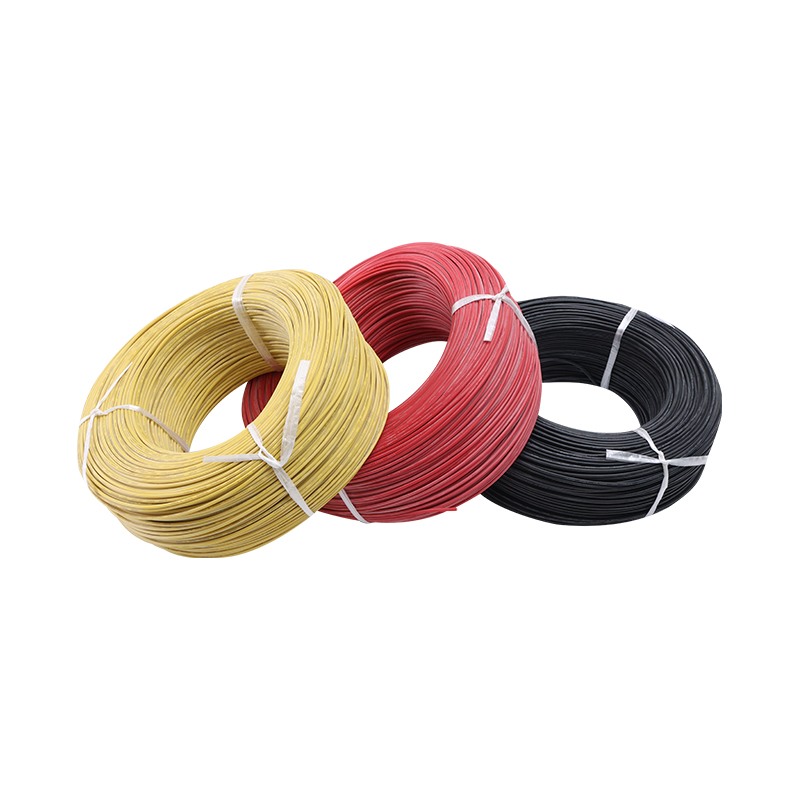

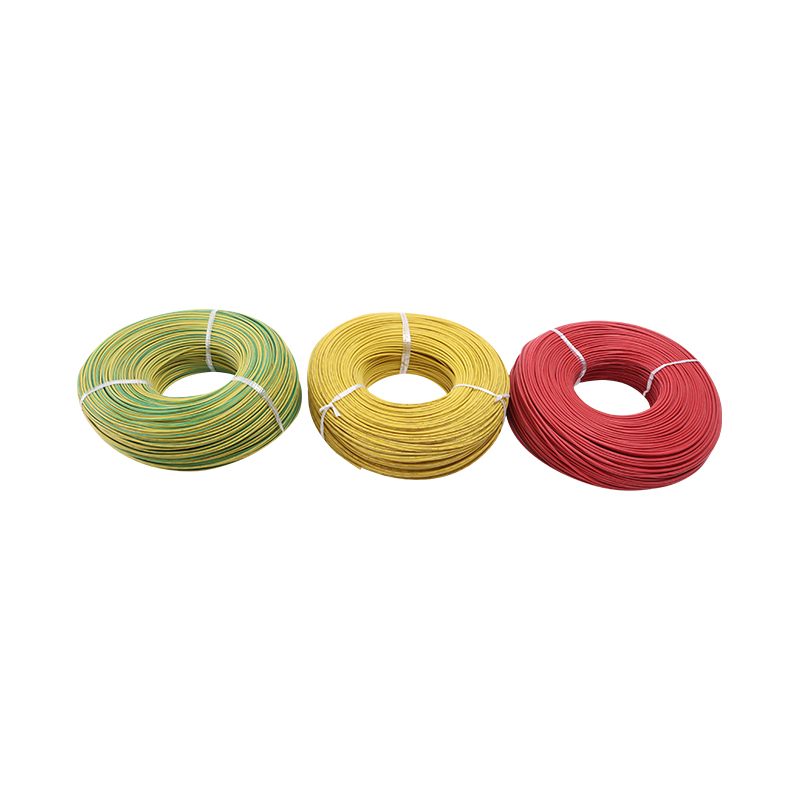

UL3135 Extra Soft Silicone Rubber Lithium Battery Wire 18AWG

The UL3135 Extra Soft Silicone Rubber Lithium Battery Wire (18AWG) is designed for superior safety, flexibility, and high-temperature resistance. Certified under UL758 (E301946) and compliant with RoHS directives, this wire ensures low toxicity and environmental safety.

With a rated voltage of 600V and a temperature range of -60°C to +200°C, it excels in demanding environments. The conductor is made of bare copper, tinned copper, silver-plated, or nickel-plated copper, ensuring excellent electrical conductivity and durability. Its silicone rubber insulation provides exceptional flexibility, making installation effortless, even in tight spaces.

Available in sizes from 26AWG to 16AWG (0.128mm²~1.31mm²), this wire is ideal for internal wiring of electronic devices, lithium battery packs, and other high-temperature applications. Whether used in industrial machinery, robotics, or power electronics, UL3135 is the top choice for professionals seeking reliable and long-lasting performance in extreme conditions.

Contact Us
Parameter
AWG
NO.
Spec.
(mm²)
Conductor Insulation Wire diameter Max
resistance
20℃(Ω/KM)
Structure
(mm)
Diameter
(mm)
Nominal
thickness
(mm)
Min
thickness
(mm)
Nominal
(mm)
Tolerance
(mm)
26 0.128 7/0.168/0.15 0.48 0.76 0.69 2 ±0.10 150
24 0.205 7/0.20 0.6 0.76 0.69 2.15 ±0.10 94.2
22 0.324 7/0.25413/0.18 0.75 0.76 0.69 2.3 ±0.15 59.4
20 0.519 7/0.3221/0.18 0.96 0.76 0.69 2.5 ±0.15 36.7
18 0.823 7/0.3933/0.18 1.2 0.76 0.69 2.75 ±0.20 23.2
16 1.31 7/0.4952/0.18 1.47 0.76 0.69 3 ±0.20 14.6
14 2.08 64/0.20 1.9 0.76 0.69 3.45 ±0.25 8.96
7/0.6241/0.254
12 3.31 19/0.4942/0.32 2.5 0.76 0.69 4.05 ±0.25 5.64
26 0.128 1/0.42 0.42 0.76 0.69 1.95 ±0.10 143
24 0.205 1/0.50 0.52 0.76 0.69 2.05 ±0.10 89.3
22 0.324 1/0.62 0.65 0.76 0.69 2.2 ±0.15 56.4
20 0.519 1/0.80 0.82 0.76 0.69 2.35 ±0.15 35.2
18 0.823 1/1.00 1.05 0.76 0.69 2.6 ±0.20 22.2
16 1.31 1/1.30 1.3 0.76 0.69 2.85 ±0.20 140
 Please contact customer service to provide product specifications.
