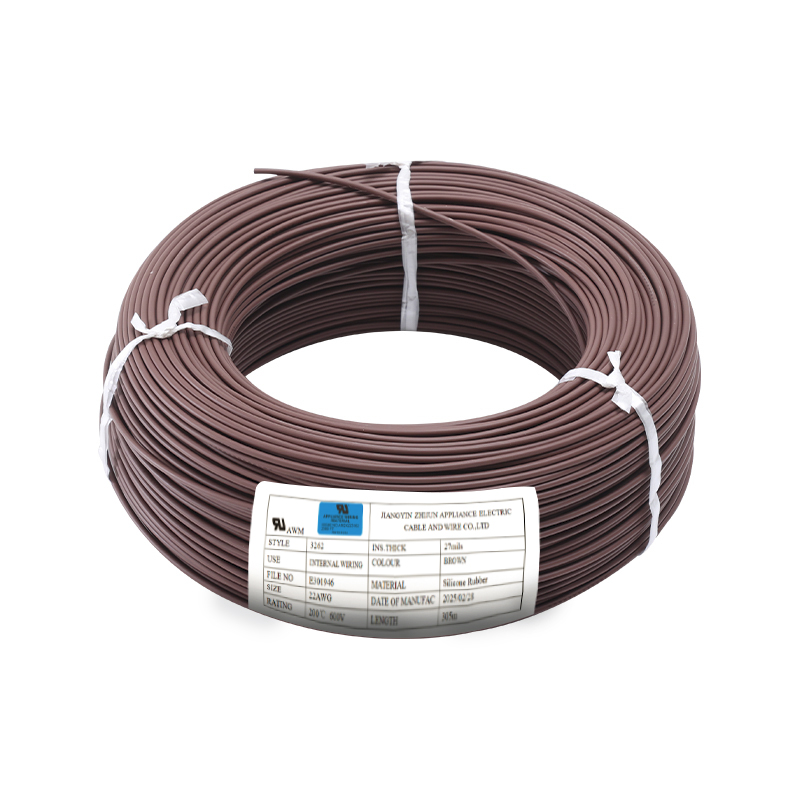

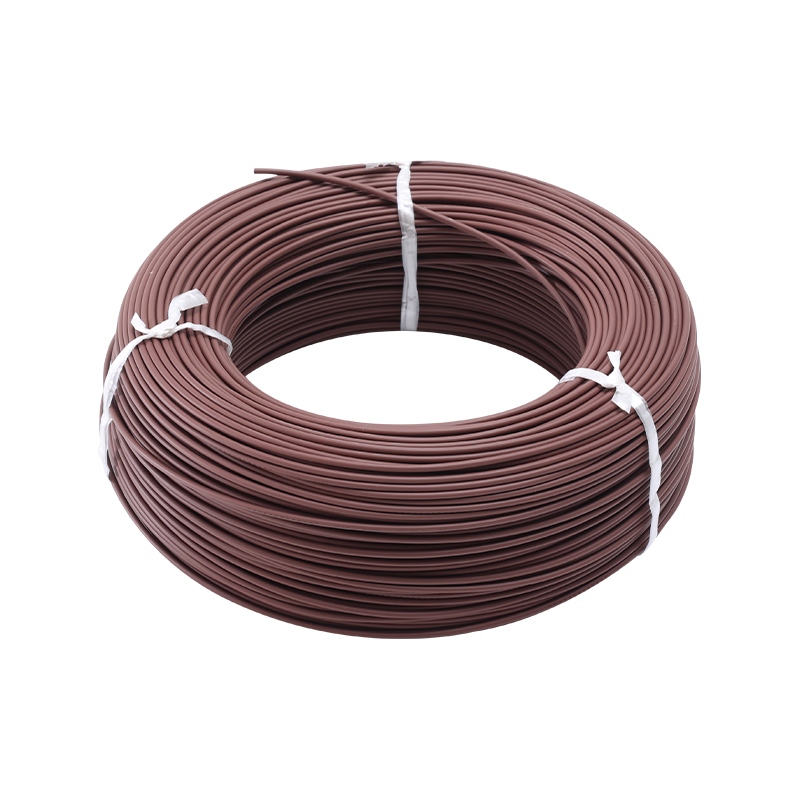

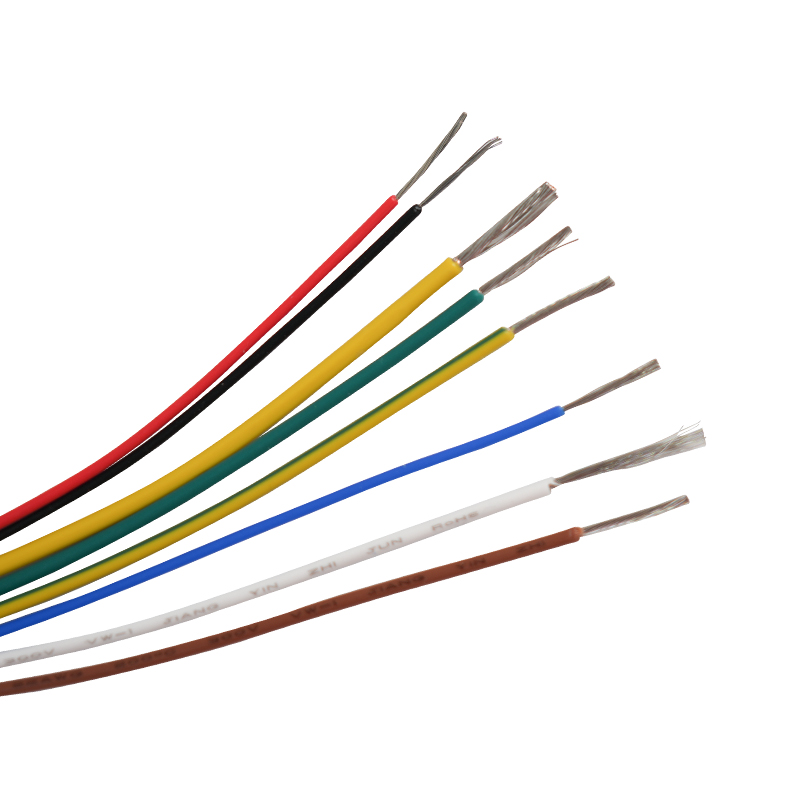

UL3262 Electrical Equipment High Temperature Resistant Wire

The UL3262 electrical equipment high temperature resistant wire is designed to deliver reliable performance in demanding environments. With a rated voltage of 600V and a temperature resistance of up to 200°C, this wire is the perfect solution for applications requiring durability and safety under high heat conditions. It is widely used in electronics, electrical appliances, lighting systems, and heating equipment, ensuring stable power transmission even in extreme temperatures.Manufactured with high-quality insulation materials, the UL3262 wire offers excellent heat resistance, flame retardancy, and flexibility, making installation easy and efficient. Whether for industrial equipment, home appliances, or specialized electronic devices, this wire provides the strength, reliability, and longevity needed for high-temperature applications. Choose UL3262 to enhance the safety and efficiency of your electrical systems.

Contact Us
Parameter
AWG
NO.
Spec.
(mm²)
Conductor Insulation Wire diameter Max
resistance
20℃(Ω/KM)
Structure
(mm)
Diameter
(mm)
Nominal
thickness
(mm)
Min
thickness
(mm)
Nominal
(mm)
Tolerance
(mm)
26 0.128 7/0.16 0.48 0.76 0.69 2 ±0.15 148
8/0.15
25 0.162 9/0.16 0.56 0.76 0.69 2.1 ±0.15 116
24 0.205 7/0.20 0.6 0.76 0.69 2.15 ±0.15 93
11/0.16
23 0.259 11/0.18 0.7 0.76 0.69 2.25 ±0.20 74.5
22 0.324 7/0.254 0.75 0.76 0.69 2.3 ±0.20 55
13/0.18
21 0.412 17/0.18 0.88 0.76 0.69 2.4 ±0.20 46.9
21/0.18
20 0.519 10/0.254 0.96 0.76 0.69 2.5 ±0.20 34.6
7/0.32
 Please contact customer service to provide product specifications.
