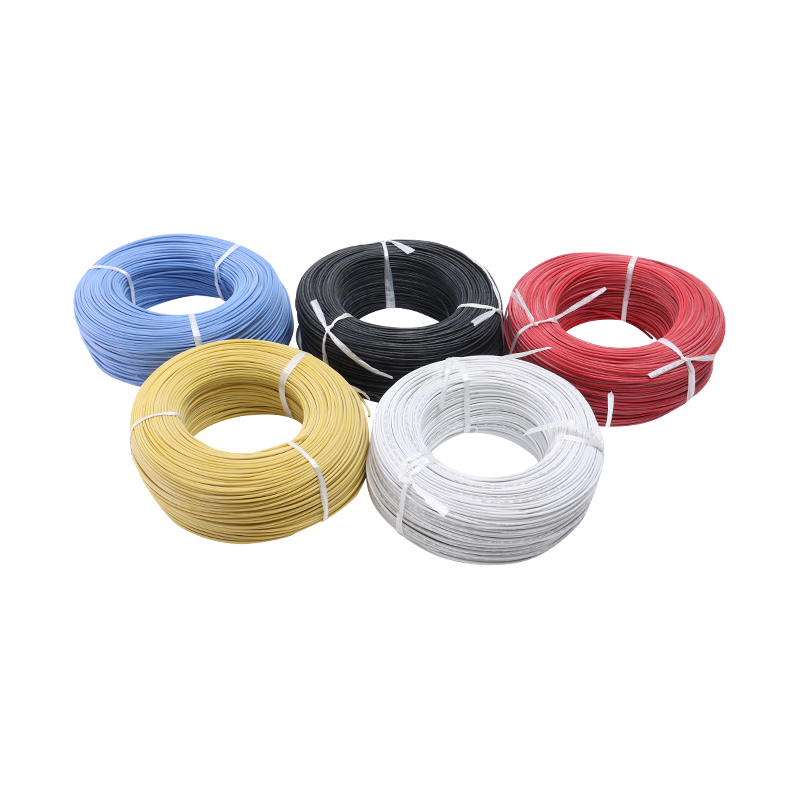

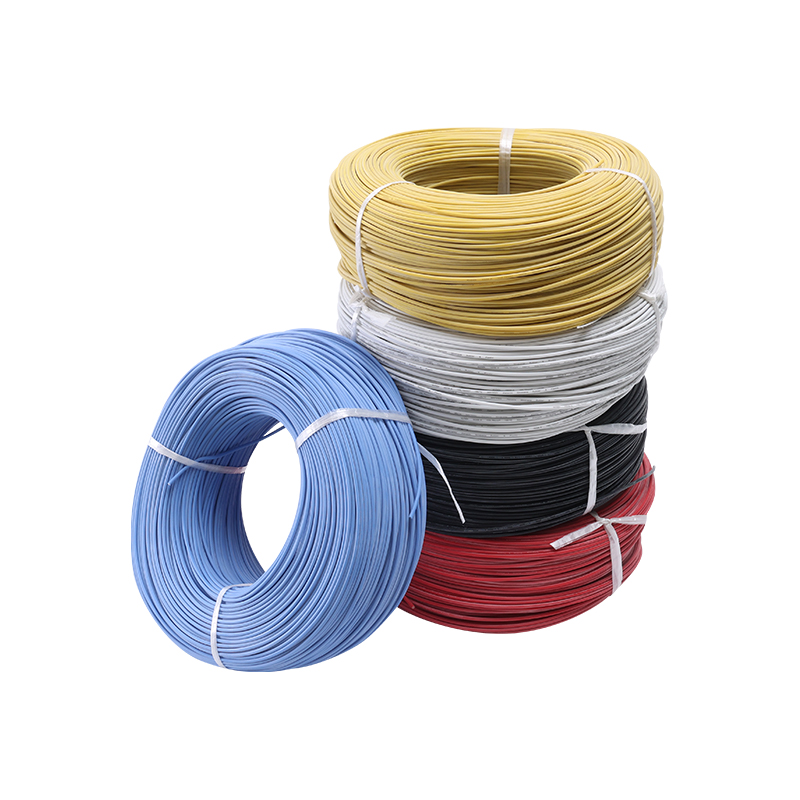

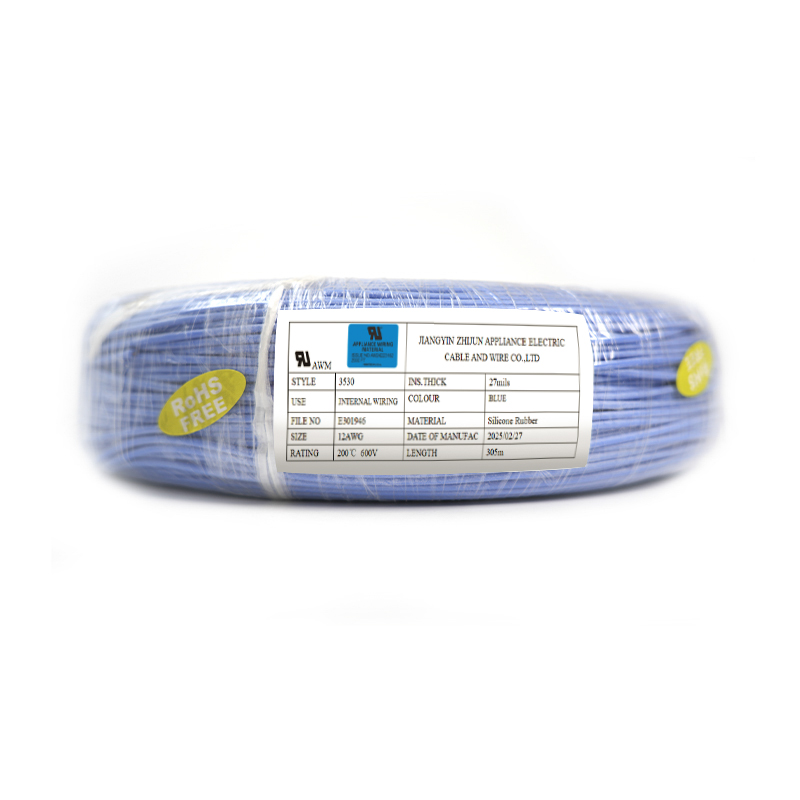

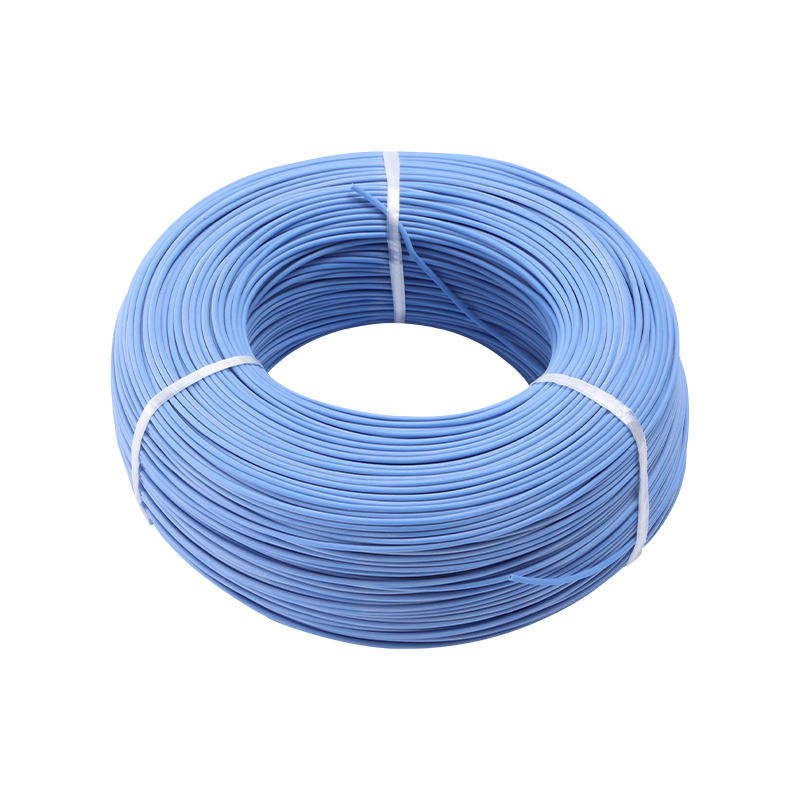

Name: UL3530 High Temperature Resistant Silicone Soft Installation Line
Rating: 5 (99 reviews)

UL3530 High Temperature Resistant Silicone Soft Installation Line

UL3530 certification standard: UL758, certification number: E301946 Rated voltage: 600V, rated temperature: -60°C~+200°C, the conductor is tinned copper wire, which has good durability and corrosion resistance. The insulation layer is made of silicone rubber material, which has excellent high temperature resistance, cold resistance and aging resistance. Suitable for high temperature environment, electronic equipment, industrial equipment. Model 26AWG~3AWG, specification: 0.128mm²~26.67mm². When choosing UL3530 silicone wire, you need to choose the appropriate specifications and models according to the specific application scenarios and requirements to ensure its safety and reliability.

Custom Multi Conductor Cable: A Practical Guide to Specify...
17 Sep, 2026
Your product is packed tightly, the ambient temperature near the heating element exceeds the rating of standard PVC wire, and the routing path needs four conductors in one jacket. Off-the-shelf cable...
READ MORE
Custom Industrial Cables: How to Specify the Right Wire fo...
09 Sep, 2026
A cable that fails inside a 230°C oven, or a motor lead that breaks down after two weeks of high-voltage service, usually points to the same root cause: the cable was picked from a catalog instead of...
READ MORE
Deepen insulation technology innovation to empower the upg...
08 Sep, 2026
On September 8th, the 10th Special Symposium on Electrical Insulation Technology was successfully held. This symposium closely aligned with the development trends of new energy motors and high-voltage...
READ MORE
What Makes High Voltage Machine Lead Wire Different from S...
03 Sep, 2026
Understanding High Voltage Machine Lead Wire High voltage machine lead wire is a specialized type of electrical wire used to connect internal windings of motors, generators, transformers, and other ro...
READ MORE

AWG NO.	Spec. （mm²）	Conductor		Insulation		Wire diameter		Max resistance 20℃(Ω/KM)
		Structure （mm）	Diameter （mm）	Nominal thickness （mm）	Min thickness （mm）	Nominal （mm）	Tolerance （mm）
		Structure （mm）	Diameter （mm）	Nominal thickness （mm）	Min thickness （mm）	Nominal （mm）	Tolerance （mm）
26	0.128	88.1	0.48	0.76	0.69	2	±0.10	150
24	0.205	7/0.20	0.6	0.76	0.69	2.15	±0.10	94.2
22	0.324	7/0.254	0.75	0.76	0.69	2.3	±0.10	59.4
20	0.519	7/0.32	0.93	0.76	0.69	2.45	±0.15	36.7
18	0.823	7/0.39	1.17	0.76	0.69	2.7	±0.15	23.2
16	1.31	7/0.49	1.47	0.76	0.69	3	±0.20	14.6
14	2.08	41/0.254 64/0.20	1.86	0.76	0.69	3.4	±0.20	8.96
12	3.31	43/0.32	2.5	0.76	0.69	4.1	±0.20	5.64
10	5.26	35/0.45	3.2	1.14	1.03	5.5	0.1	3.546
8	8.367	70/0.40	4.4	1.52	1.37	7.5	0.3	2.23
8	8.367	70/0.40	4.4	1.52	1.37	7.5	-0.2	2.23
7	10.55	84/0.40	4.6	1.52	1.37	7.7	0.2	1.768
6	13.3	105/0.40	5.3	1.52	1.37	8.4	0.3	1.403
6	13.3	105/0.40	5.3	1.52	1.37	8.4	-0.2	1.403
5	16.77	133/0.40	6	1.52	1.37	9.1	0.3	1.113
5	16.77	133/0.40	6	1.52	1.37	9.1	-0.2	1.113
4	21.15	168/0.40	6.8	1.52	1.37	9.9	0.3	0.882
4	21.15	168/0.40	6.8	1.52	1.37	9.9	-0.2	0.882
3	26.67	210/0.40	7.6	1.52	1.37	10.7	0.238	0.6996
Please contact customer service to provide product specifications.
