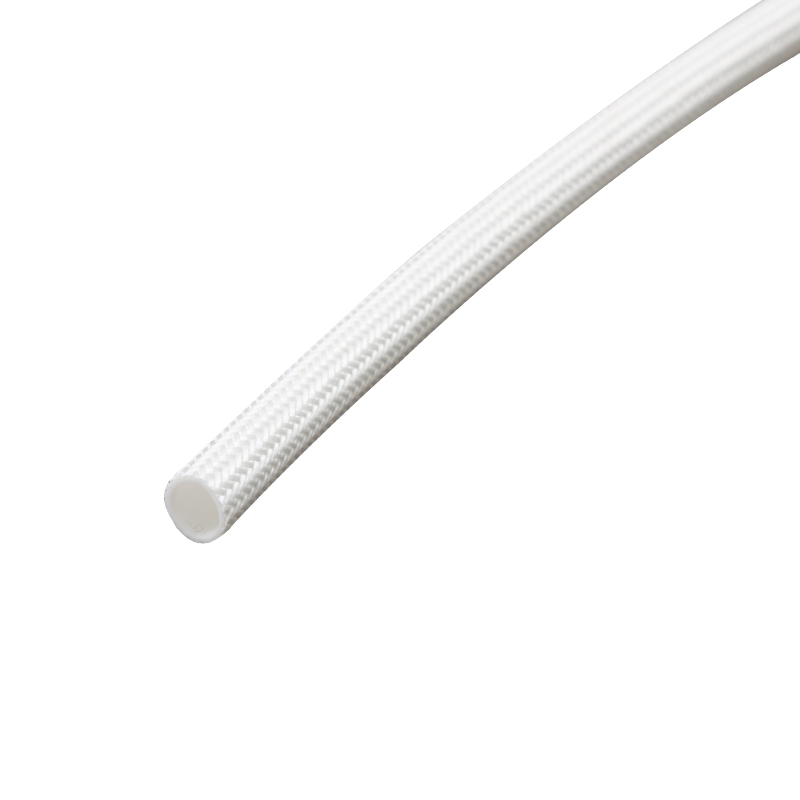

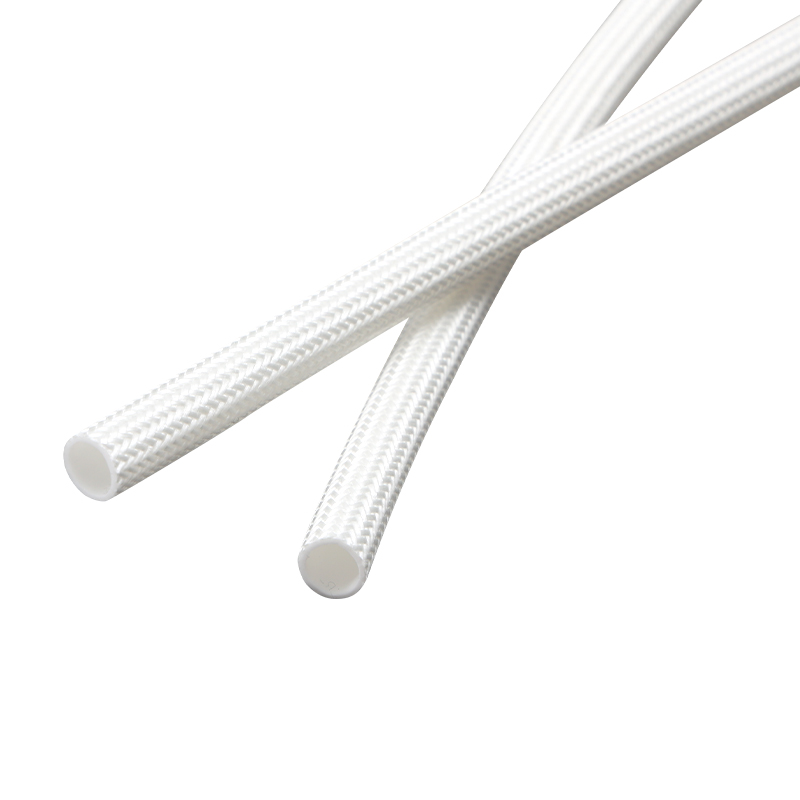

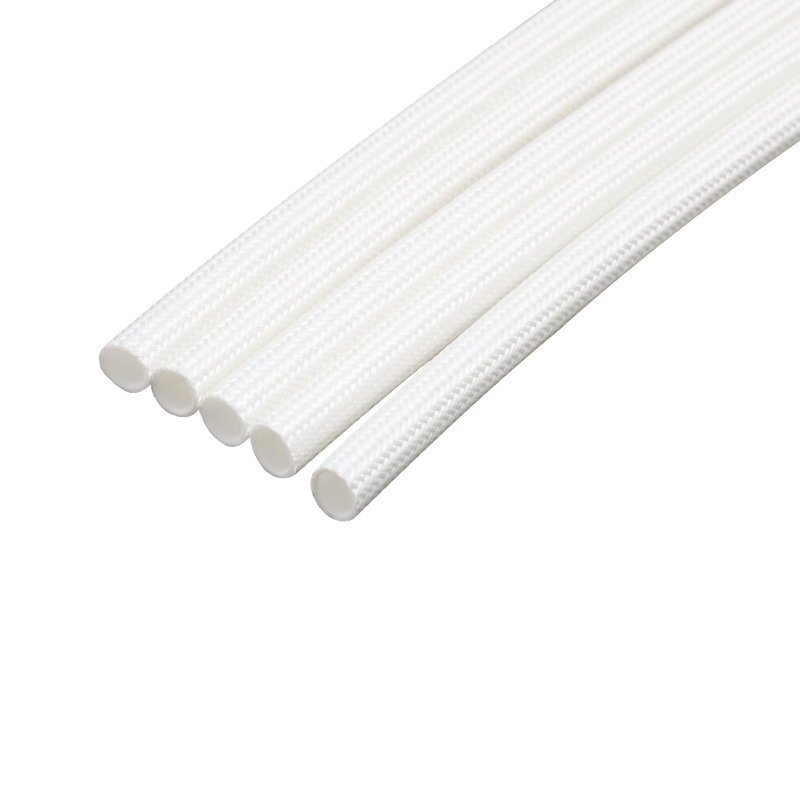

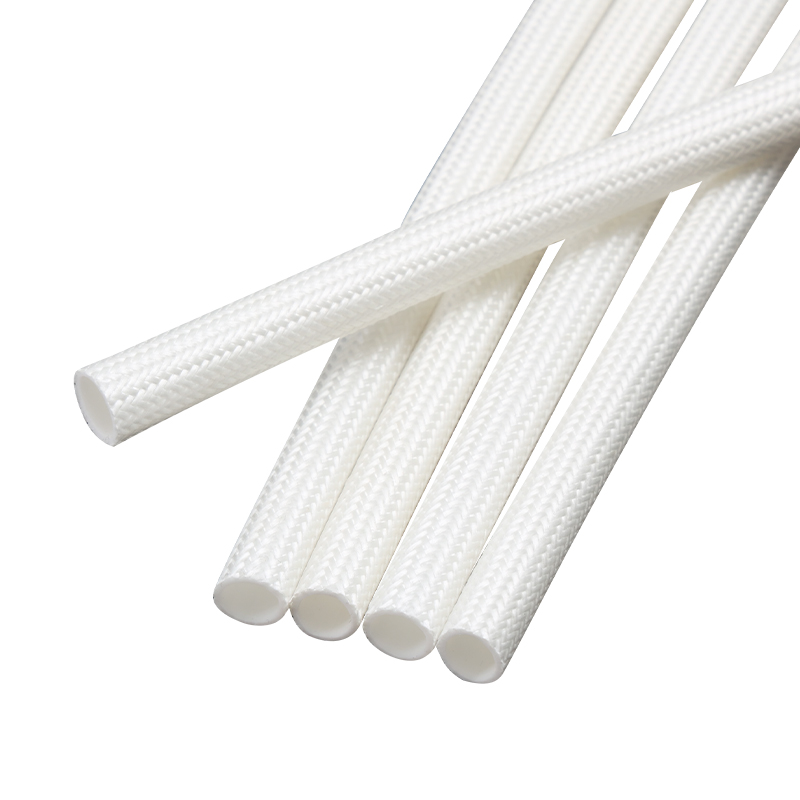

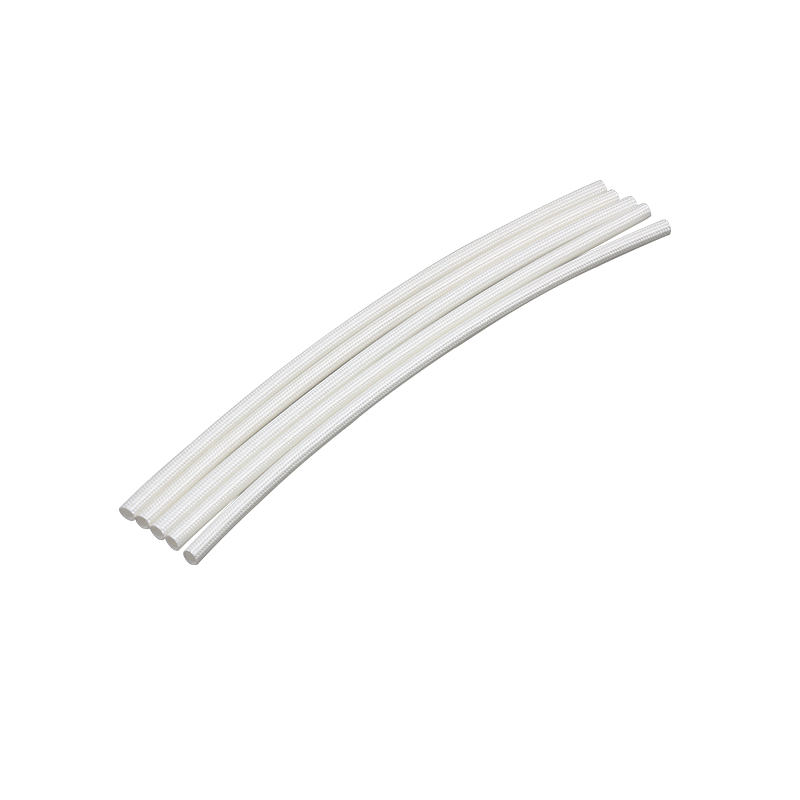

Silicone Fiberglass Braided Silicone Tube High Pressure And High Temperature Resistant Glass Fiber Braided Silicone Rubber Sleeve

Silicone fiberglass braided silicone tube is a widely used high temperature resistant tube. It can work at -60°C to 200°C for a long time. The certification standard is UL758, the certification number is E301946, and the rated voltage is 600V. The specification inner diameter ranges from 1 to 20mm²
1. Material composition Silicone rubber tube, glass fiber, silicone coating
2. Main features: high temperature resistance, insulation, chemical corrosion resistance, mechanical strength, flexibility and easy installation
4. Application areas: electronics and electrical, aerospace, automotive industry, industrial equipment, household appliances.

Contact Us
PREV：Teflon Sleeve Fep Teflon White SleeveNEXT：Silicone Fiberglass Sleeve High Temperature Resistant Silicone Coated Glass Fiber Braided Sleeve
Parameter
Specification
inner diameter
(mm)		 Insulation minimum thickness
(mm)		 Insulation thickness
(mm)
1 0.45 0.6
2 0.5 0.6
2.5 0.5 0.7
3 0.55 0.8
4 0.7 1
4.2 0.7 1
4.5 0.7 1
5 0.8 1
6 1 1.2
7 1 1.2
8 1 1.2
9 1.2 1.5
10 1.2 1.5
11 1.3 1.6
12 1.5 1.8
14 1.5 1.8
16 1.6 2
18 1.6 2
20 1.6 2
Please contact customer service to provide product specifications.
