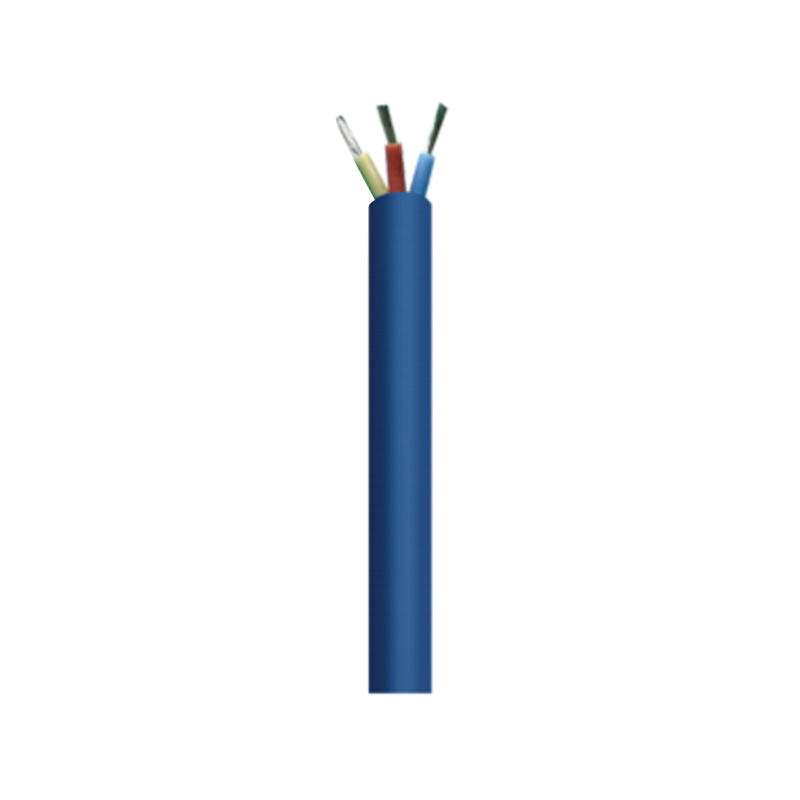

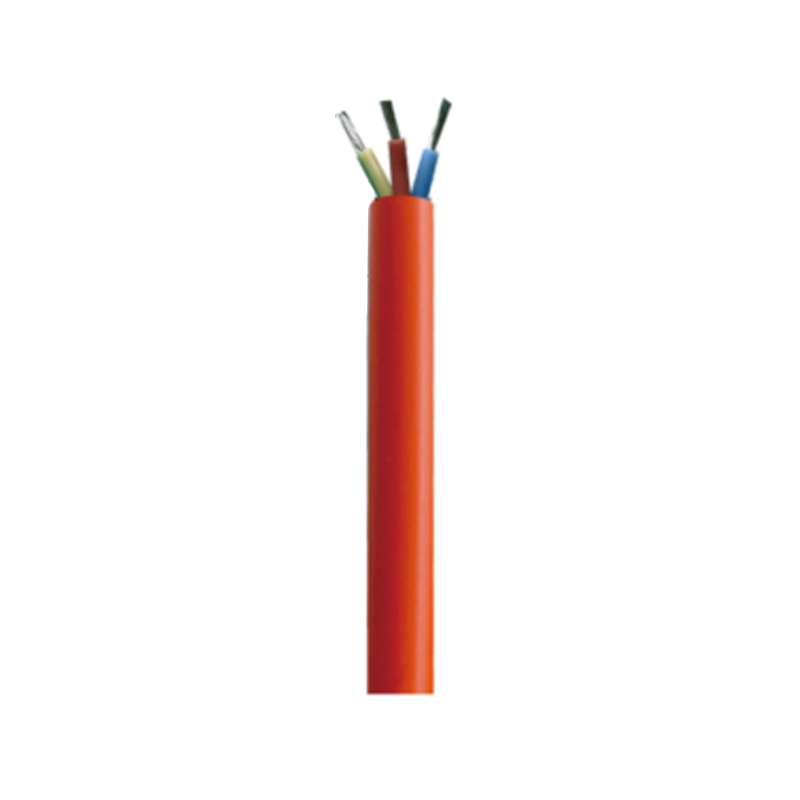

YGZ Heat-Resistant Silicone Rubber Multi-Core Sheathed Cable

Silicone sheathed cable is a multi-core cable that uses silicone rubber as the sheath material. It has excellent high temperature resistance, low temperature resistance, weather resistance and flexibility, chemical stability, and environmental protection. Rated voltage 600/1000V, rated temperature -60°C to +180°C, conductor is bare copper or tinned copper wire, insulation layer is silicone rubber, and sheath is also silicone rubber.
Application areas
1. High temperature environment: high temperature equipment in metallurgy, glass manufacturing, ceramics and other industries.
2. Mobile equipment: robots, automation equipment and other occasions that move frequently.
3. Outdoor equipment: outdoor power equipment such as solar energy and wind energy.
4. Medical equipment: internal connections of medical instruments and equipment.
5. Household appliances: high temperature appliances such as electric blankets and electric ovens.
6. Aerospace: electrical connections in extreme environments such as aircraft and satellites.
Common models: YGZ, YGZ-GL (with braided sheath)
Specification range: 2*0.5mm²~3*240mm²
Silicone sheathed cables are widely used in a variety of high temperature and complex environments due to their excellent performance.

Contact Us
PREV：60227IEC52 RVV 3C Certified PVC Sheathed Flexible Wire For ConnectionNEXT：No next product
Parameter
Core No. ×section
（mm²）		 Structure
No./diameter
（mm）		 Insulation Sheath
thickness
（mm）		 Wire diameter Max resistance
20℃(ΩKM)
Thickness
（mm）		 Diameter
（mm）		 Nominal
（mm）		 Tolerance
（mm）		 Bare
copper		 Tin-coated
copper
2×0.5 16/0.20 0.6 2.15 0.8 5.9 ±0.20 39 40.1
3×0.5 16/0.20 0.6 2.15 0.8 6.2 ±0.20 39 40.1
4×0.5 16/0.20 0.6 2.15 0.8 6.8 ±0.25 39 40.1
5×0.5 16/0.20 0.6 2.15 0.8 7.4 ±0.30 39 40.1
6×0.5 16/0.20 0.6 2.15 0.8 7.6 ±0.30 39 40.1
7×0.5 16/0.20 0.6 2.15 0.8 8.1 ±0.30 39 40.1
2×0.75 24/0.20 0.6 2.35 0.8 6.3 ±0.20 26 26.7
3×0.75 24/0.20 0.6 2.35 0.8 6.7 ±0.25 26 26.7
4×0.75 24/0.20 0.6 2.35 1 7.7 ±0.30 26 26.7
5×0.75 24/0.20 0.6 2.35 1 8.4 ±0.30 26 26.7
6×0.75 24/0.20 0.6 2.35 1 8.6 ±0.30 26 26.7
7×0.75 24/0.20 0.6 2.35 1 9.1 ±0.30 26 26.7
10×0.75 24/0.20 0.6 2.35 1.2 11.8 ±0.30 26 26.7
12×0.75 24/0.20 0.6 2.35 1.3 12.5 ±0.30 26 26.7
19×0.75 24/0.20 0.6 2.35 1.5 14.8 ±0.40 26 26.7
2×1.0 32/0.20 0.6 2.55 0.8 6.7 ±0.25 19.5 20
3×1.0 32/0.20 0.6 2.55 1 7.5 ±0.30 19.5 20
4×1.0 32/0.20 0.6 2.55 1 8.2 ±0.30 19.5 20
5×1.0 32/0.20 0.6 2.55 1 8.9 ±0.30 19.5 20
6×1.0 32/0.20 0.6 2.55 1 9.2 ±0.30 19.5 20
7×1.0 32/0.20 0.6 2.55 1 9.7 ±0.30 19.5 20
10×1.0 32/0.20 0.6 2.55 1.2 12.6 ±0.30 19.5 20
12×1.0 32/0.20 0.6 2.55 1.4 13.5 ±0.30 19.5 20
19×1.0 32/0.20 0.6 2.55 1.5 15.8 ±0.40 19.5 20
2×1.5 30/0.25 0.6 2.9 1 7.8 ±0.30 13.3 13.7
3×1.5 30/0.25 0.6 2.9 1 8.3 ±0.30 13.3 13.7
4×1.5 30/0.25 0.6 2.9 1 9 ±0.30 13.3 13.7
5×1.5 30/0.25 0.6 2.9 1.1 10 ±0.30 13.3 13.7
6×1.5 30/0.25 0.6 2.9 1.1 10.4 ±0.30 13.3 13.7
7×1.5 30/0.25 0.6 2.9 1.1 10.9 ±0.30 13.3 13.7
10×1.5 30/0.25 0.6 2.9 1.2 14 ±0.30 13.3 13.7
12×1.5 30/0.25 0.6 2.9 1.4 14.9 ±0.40 13.3 13.7
14×1.5 30/0.25 0.6 2.9 1.4 15.7 ±0.40 13.3 13.7
16×1.5 30/0.25 0.6 2.9 1.4 16.6 ±0.40 13.3 13.7
18×1.5 30/0.25 0.6 2.9 1.6 17.2 ±0.40 13.3 13.7
19×1.5 30/0.25 0.6 2.9 1.6 17.7 ±0.40 13.3 13.7
20×1.5 30/0.25 0.6 2.9 1.8 18.4 ±0.40 13.3 13.7
24×1.5 30/0.25 0.6 2.9 1.8 21 ±0.40 13.3 13.7
27×1.5 30/0.25 0.6 2.9 2 22 ±0.50 13.3 13.7
37×1.5 30/0.25 0.6 2.9 2.4 25.2 ±0.50 13.3 13.7
2×2.5 50/0.25 0.7 3.4 1.2 9.2 ±0.30 7.98 8.21
3×2.5 50/0.25 0.7 3.4 1.2 9.8 ±0.30 7.98 8.21
4×2.5 50/0.25 0.7 3.4 1.2 10.6 ±0.30 7.98 8.21
5×2.5 50/0.25 0.7 3.4 1.2 11.6 ±0.30 7.98 8.21
6×2.5 50/0.25 0.7 3.4 1.2 12 ±0.30 7.98 8.21
7×2.5 50/0.25 0.7 3.4 1.2 12.6 ±0.30 7.98 8.21
10×2.5 50/0.25 0.7 3.4 1.4 16.4 ±0.40 7.98 8.21
12×2.5 50/0.25 0.7 3.4 1.6 17.4 ±0.40 7.98 8.21
19×2.5 50/0.25 0.7 3.4 1.8 20.6 ±0.40 7.98 8.21
24×2.5 50/0.25 0.7 3.4 2.2 25 ±0.50 7.98 8.21
27×2.5 50/0.25 0.7 3.4 2.4 25.9 ±0.50 7.98 8.21
37×2.5 50/0.25 0.7 3.4 2.4 28.8 ±0.50 7.98 8.21
2×4 56/0.30 0.8 4.3 1.2 11.2 ±0.30 4.95 5.09
3×4 56/0.30 0.8 4.3 1.3 12 ±0.30 4.95 5.09
4×4 56/0.30 0.8 4.3 1.5 13.5 ±0.30 4.95 5.09
5×4 56/0.30 0.8 4.3 1.5 14.8 ±0.40 4.95 5.09
6×4 56/0.30 0.8 4.3 1.8 15.7 ±0.40 4.95 5.09
7×4 56/0.30 0.8 4.3 1.8 16.6 ±0.40 4.95 5.09
12×4 56/0.30 0.8 4.3 2.2 22.4 ±0.50 4.95 5.09
2×6 84/0.30 0.8 4.9 1.5 13 ±0.30 3.3 3.39
3×6 84/0.30 0.8 4.9 1.5 13.7 ±0.30 3.3 3.39
4×6 84/0.30 0.8 4.9 1.8 15.6 ±0.40 3.3 3.39
5×6 84/0.30 0.8 4.9 1.8 17 ±0.40 3.3 3.39
6×6 84/0.30 0.8 4.9 2 18 ±0.40 3.3 3.39
7×6 84/0.30 0.8 4.9 2 18.8 ±0.40 3.3 3.39
2×10 84/0.40 1 6.6 1.8 17 ±0.40 1.91 1.95
3×10 84/0.40 1 6.6 2 18.4 ±0.50 1.91 1.95
4×10 84/0.40 1 6.6 2.2 20.6 ±0.50 1.91 1.95
5×10 84/0.40 1 6.6 2.4 22.8 ±0.50 1.91 1.95
2×16 126/0.40 1.2 8.2 2 22.6 ±0.50 1.21 1.24
3×16 126/0.40 1.2 8.2 2.2 22.4 ±0.50 1.21 1.24
4×16 126/0.40 1.2 8.2 2.4 25 ±0.50 1.21 1.24
5×16 126/0.40 1.2 8.2 2.6 27.6 ±0.50 1.21 1.24
2×25 196/0.40 1.4 10.1 2.2 25 ±0.50 0.78 0.795
3×25 196/0.40 1.4 10.1 2.4 27 ±0.50 0.78 0.795
4×25 196/0.40 1.4 10.1 2.4 29.5 ±0.50 0.78 0.795
5×25 196/0.40 1.4 10.1 2.6 32.8 ±0.60 0.78 0.795
2×35 276/0.40 1.4 11.4 2.4 28 ±0.50 0.554 0.565
3×35 276/0.40 1.4 11.4 2.6 30 ±0.50 0.554 0.565
4×35 276/0.40 1.4 11.4 2.6 33 ±0.60 0.554 0.565
3×50 396/0.40 1.6 13.9 2.8 36 ±0.60 0.386 0.393
4×50 396/0.40 1.6 13.9 2.8 39.6 ±0.60 0.386 0.393
3×70 360/0.50 1.6 15.6 3 40 ±0.60 0.272 0.277
3×95 475/0.50 1.8 18.1 3.2 45.8 ±0.80 0.206 0.21
3×120 608/0.50 2 20 3.6 50.6 ±0.80 0.161 0.164
3×150 756/0.50 2.2 22.4 3.8 56.2 ±0.80 0.129 0.132
3×185 925/0.50 2.4 24.8 4 61.8 ±1.0 0.106 0.108
3×240 1221/0.50 2.6 28.2 4.2 69.4 ±1.0 0.0801 0.082
 Please contact customer service to provide product specifications.
Core No. ×section（
mm²）		 Structure
No./diameter
（mm）		 Insulation
diameter
（mm）		 Sheath
thickness
（mm）		 Wire diameter
Nominal
Tolerance
Nominal
（mm）		 Tolerance（mm）
3×1.5+1×1.0 30/0.25 32/0.20 2.9 2.55 1 8.9 ±0.30
3×2+1×1.5 41/0.25 30/0.25 3.3 2.9 1.2 10.4 ±0.30
3×2.5+1×1.5 49/0.25 30/0.25 3.4 2.9 1.2 10.5 ±0.30
3×4+1×25 56/0.30 49/0.25 4.3 3.4 1.5 13 ±0.30
3×6+1×4 84/0.30 56/0.30 4.9 4.3 1.5 14.7 ±0.40
3×10+1×6 84/0.40 84/0.30 6.6 4.9 2 19.3 ±0.50
3×16+1×10 126/0.40 84/0.40 8.2 6.6 2.2 23.4 ±0.50
3×25+1×16 196/0.40 126/0.40 10.1 8.2 2.4 28.2 ±0.50
3×35+1×16 276/0.40 126/0.40 11.4 8.2 2.6 31.6 ±0.50
3×35+1×25 276/0.40 196/0.40 11.4 10.1 2.6 32.2 ±0.60
3×50+1×25 396/0.40 196/0.40 13.9 10.1 2.8 37.8 ±0.60
3×50+1×35 396/0.40 276/0.40 13.9 11.4 2.8 38.4 ±0.60
3×70+1×35 360/0.50 276/0.40 15.6 11.4 3 42.2 ±0.60
3×70+1×50 360/0.50 396/0.40 15.6 13.9 3 43 ±0.60
3×95+1×50 475/0.50 396/0.40 18.1 13.9 3.2 48.3 ±0.60
3×120+1×70 608/0.50 360/0.50 20 15.6 3.6 53.5 ±0.80
3×150+1×70 756/0.50 360/0.50 22.4 15.6 3.8 58.3 ±0.80
3×150+1×95 756/0.50 475/0.50 22.4 18.1 3.8 60 ±1.0
3×185+1×70 925/0.50 360/0.50 24.8 15.6 4 64.2 ±1.0
3×185+1×95 925/0.50 475/0.50 24.8 18.1 4.2 65.8 ±1.0
3×240+1×95 1221/0.50 475/0.50 28.2 18.1 4.5 72.8 ±1.0
3×240+1×120 1221/0.50 608/0.50 28.2 2 4.5 75 ±1.2
 Please contact customer service to provide product specifications.
