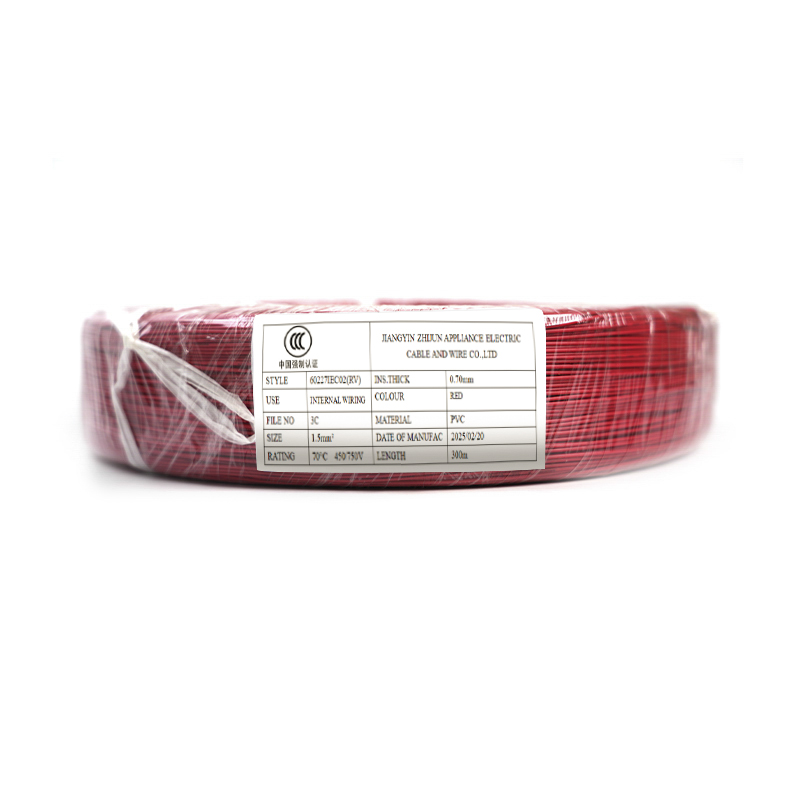

60227IEC02(RV) Non-Sheathed Cables For Fixed Wiring

Engineered to operate at a rated temperature of 70°C and designed for voltages of 450/750V, these 60227IEC02(RV)Non-Sheathed Cables For Fixed Wiring For Fixed Wiring are built to deliver outstanding performance and durability. The conductors feature high-quality stranded bare copper available in sizes ranging from 1.5 to 240mm², ensuring excellent conductivity and optimal energy transfer. The PVC insulation not only meets stringent ROHS environmental standards but also guarantees safety and sustainability. Having successfully passed the GB 12666.2 flame retardancy test, these cables provide an added layer of protection against fire hazards. Their standard insulation thickness makes them easy to cut and strip, streamlining the installation process and reducing labor time. Ideal for fixed wiring in a variety of applications, the 60227 IEC 02(RV) cables are designed to meet the needs of modern electrical systems with a focus on reliability and safety. Upgrade your wiring solutions with these non-sheathed cables and enjoy the perfect blend of performance, compliance, and ease-of-use for your next project.

Contact Us
PREV：60227IEC06(RV) National Standard Wiring Single Core CableNEXT：UL1015 105°C American Standard Electrical Internal Connection Wire
Parameter
Conductor Insulation Max
resistance
20℃(Ω/KM)		 Packing
(m)
AWG Construction
(No./mm)		 Thickness
(mm)		 O.D.
(mm)
1.5 30/0.25 0.7 3.15 13.3 200
2.5 49/0.25 0.8 3.75 7.98 200
4 56/0.30 0.8 4.3 4.95 100
6 84/0.30 0.8 4.95 3.3 100
10 84/0.40 1 6.4 1.91 100
16 126/0.40 1 7.8 1.21 100
25 196/0.40 1.2 9.75 0.78 100
35 276/0.40 1.2 11 0.554 100
50 395/0.40 1.4 13.1 0.386 50
70 356/0.50 1.4 15.1 0.272 50
95 475/0.50 1.6 17.3 0.206 50
120 608/0.50 1.6 19.6 0.161 50
150 756/0.50 1.8 22 0.129 50
185 925/0.50 2 24.5 0.106 50
240 1221/0.50 2.2 27.9 0.0801 50
 Please contact customer service to provide product specifications.
