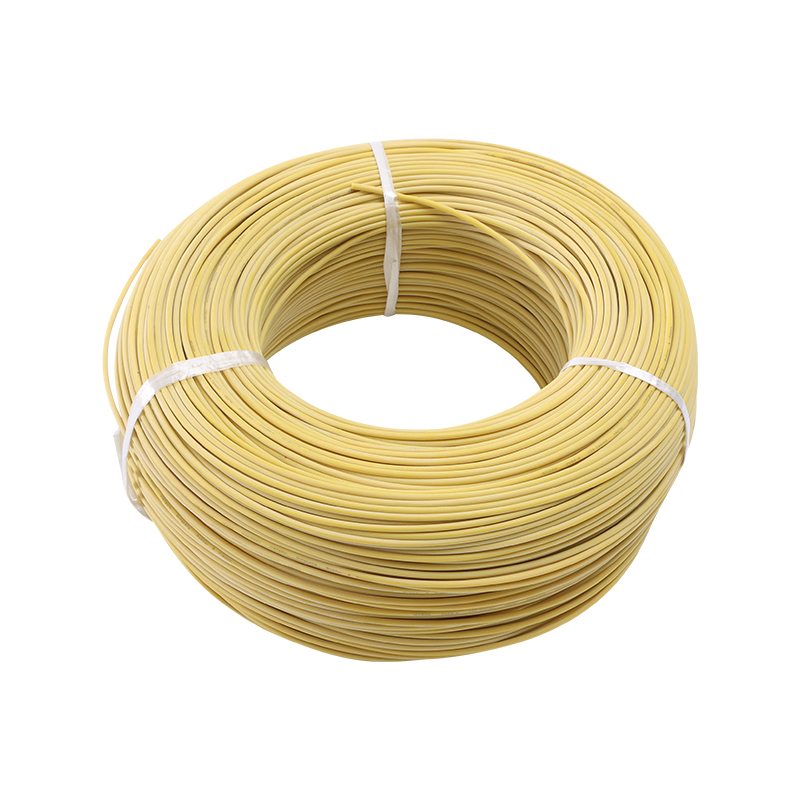

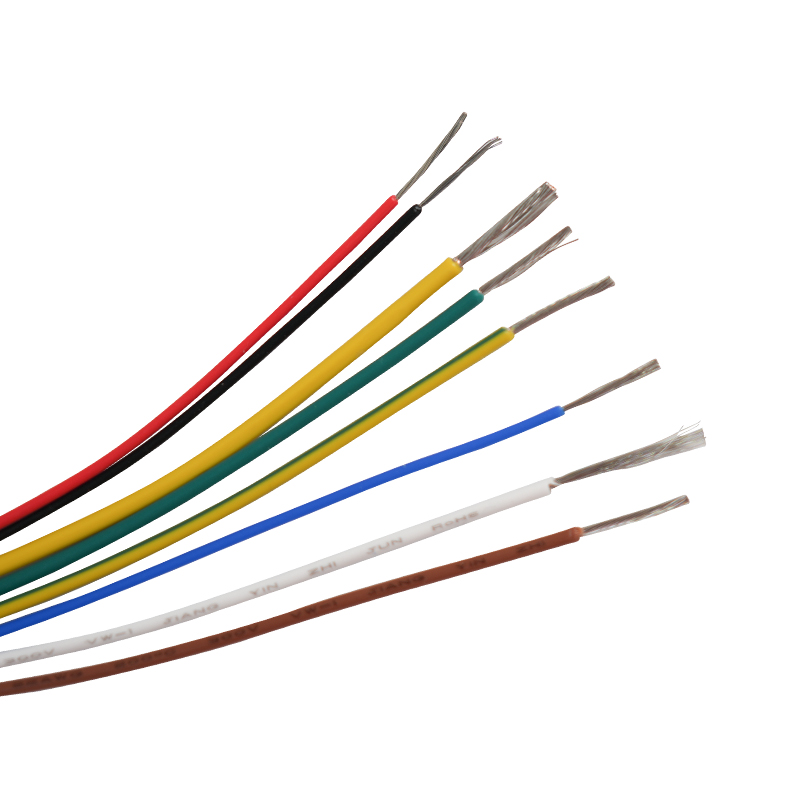

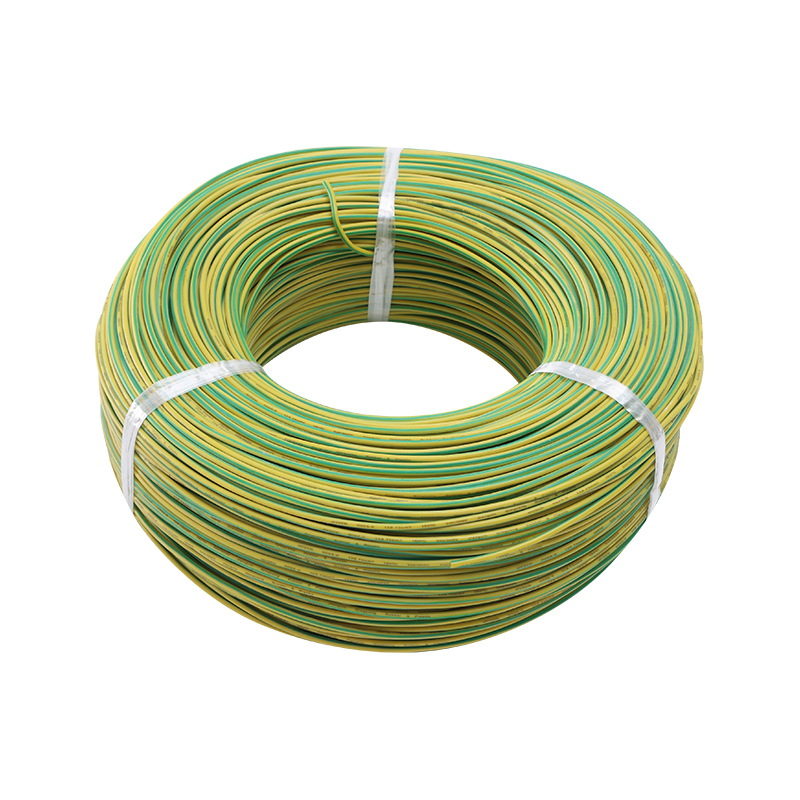

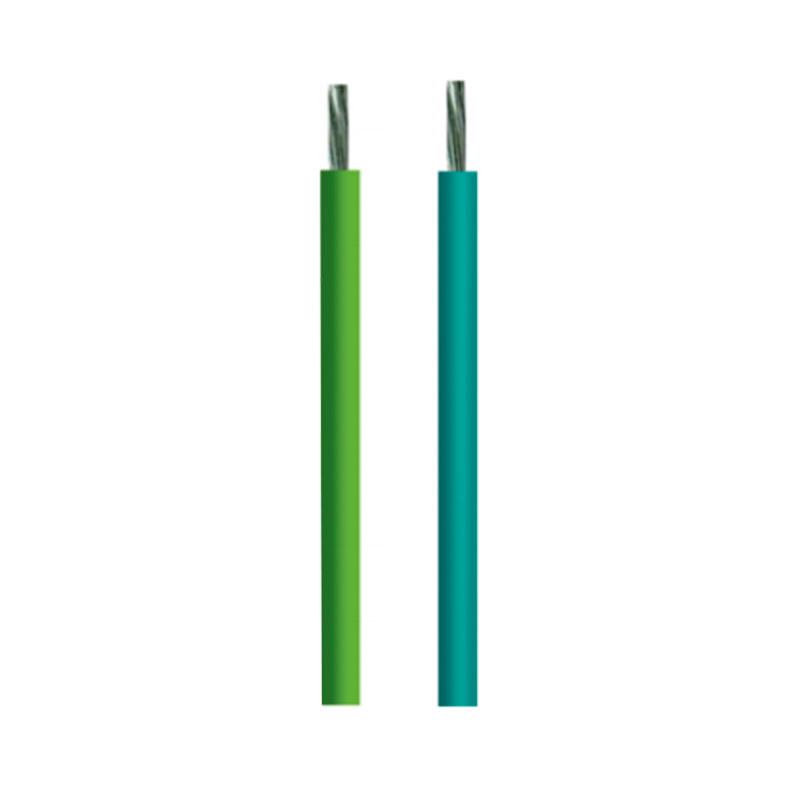

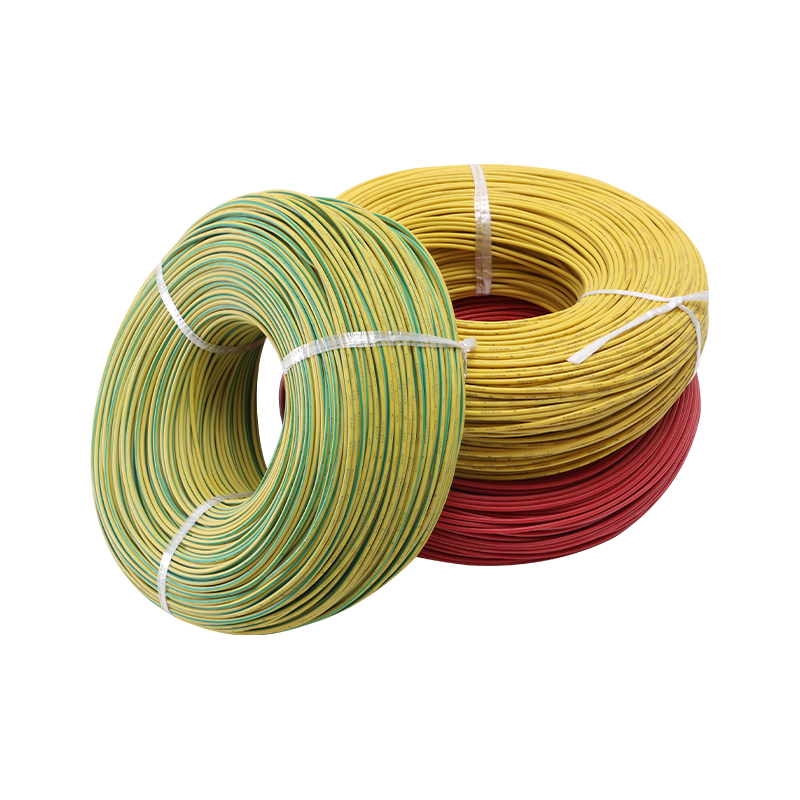

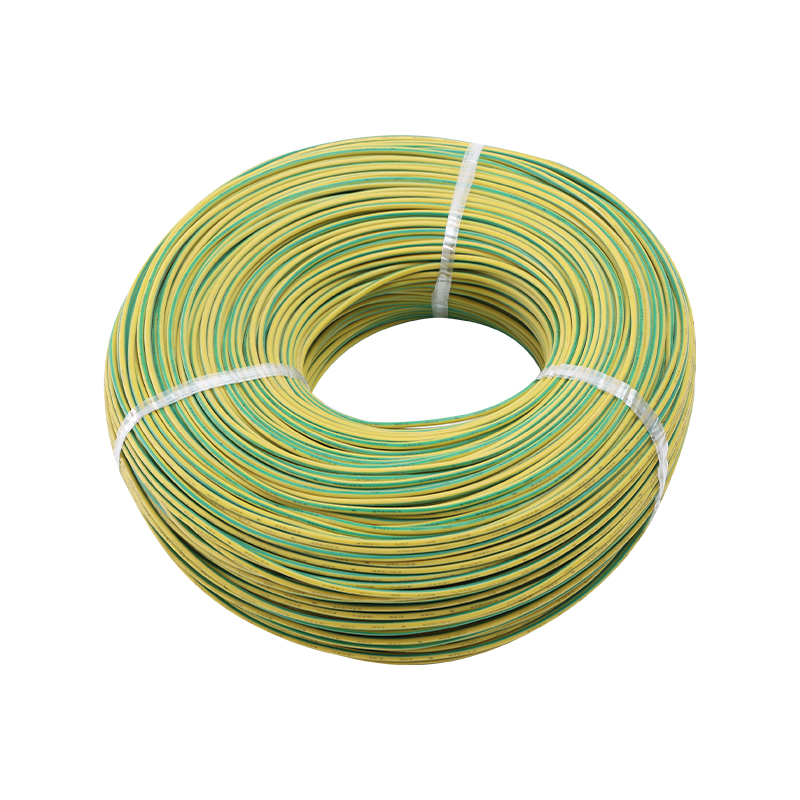

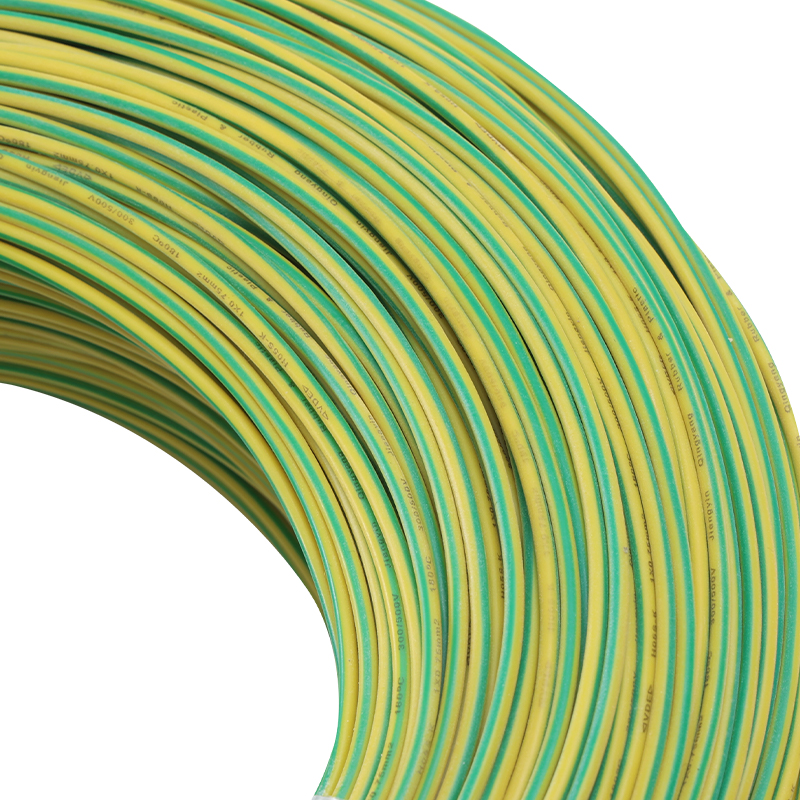

H03s-K Vde Certified Silicone Rubber Insulated Single Core Wire 0.75/1.0/1.5 Square

H03S-K silicone wire is a common type of wire.
It is made of multiple strands of fine copper wires twisted together, with good flexibility and conductivity.
It uses silicone material, which has excellent high temperature resistance, low temperature resistance, aging resistance, corrosion resistance and other characteristics.
300/300V, suitable for low-voltage electrical equipment.
The operating temperature range is usually -60°C to +180°C
It is suitable for electrical equipment, household appliances, industrial equipment, lighting equipment, etc. in high temperature environments.
It is often used in occasions that require frequent movement or bending, such as robots, automation equipment, etc.
Certification standard: DIN VDE 0282-3 Certification number: 40015714
7. Specification range: 0.5~2.5mm²

Contact Us
PREV：UL3367 Silicone High Temperature Resistant WireNEXT：H05S-K Vde German Standard Wiring Harness Processing High Temperature Resistant Silicone Connection Line
Parameter
Spec.
（mm²）		 Conductor Insulation Wire diameter Max
resistance
20℃(Ω/KM)
Structure
（mm）		 Diameter
（mm）		 Nominal
thickness
（mm）		 Min
thickness
（mm）		 Nominal
（mm）		 Tolerance
（mm）
0.5 28/0.15 0.95 0.6 0.44 2.15 ±0.15 40.1
16/0.20
0.75 24/0.20 1.15 0.6 0.44 2.35 ±0.15 26.7
42/0.15
1 32/0.20 1.34 0.6 0.44 2.54 ±0.15 20
1.5 30/0.25 1.6 0.7 0.53 3 ±0.20 13.7
48/0.20
2.5 49/0.25 2 0.8 0.62 5.6 ±0.20 8.21
51/0.25
 Please contact customer service to provide product specifications.
