UL3143 Silicone Rubber Insulated Single Core Cable Custom
Home / Product / Insulated Wire / Silicone Rubber Wire / UL3143 Silicone Rubber Insulated Single Core Cable
  • UL3143 Silicone Rubber Insulated Single Core Cable
  • UL3143 Silicone Rubber Insulated Single Core Cable
  • UL3143 Silicone Rubber Insulated Single Core Cable
  • UL3143 Silicone Rubber Insulated Single Core Cable
  • UL3143 Silicone Rubber Insulated Single Core Cable
  • UL3143 Silicone Rubber Insulated Single Core Cable
  • UL3143 Silicone Rubber Insulated Single Core Cable
  • UL3143 Silicone Rubber Insulated Single Core Cable
  • UL3143 Silicone Rubber Insulated Single Core Cable
  • UL3143 Silicone Rubber Insulated Single Core Cable

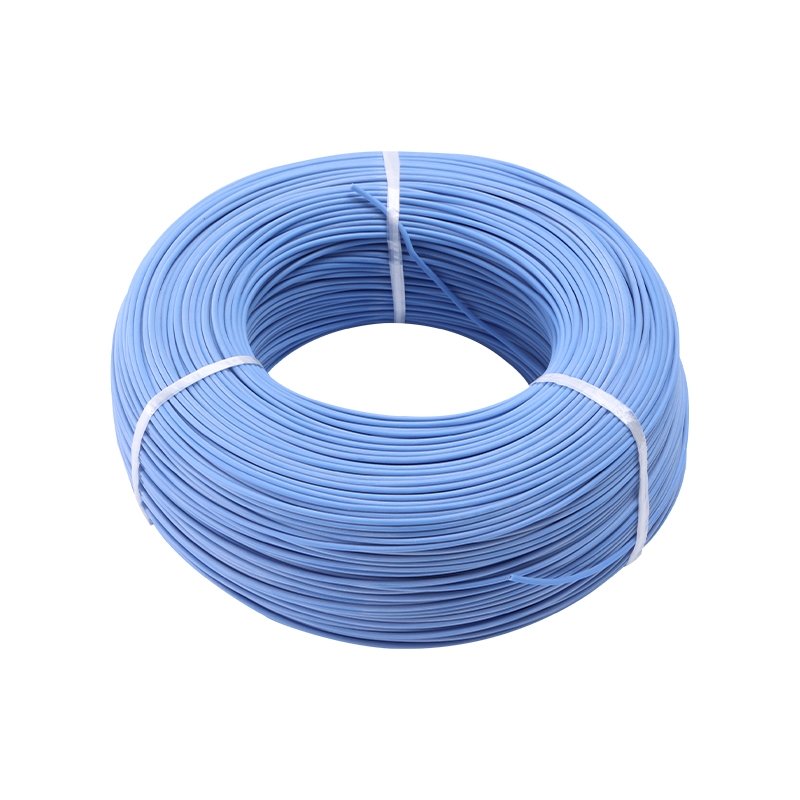

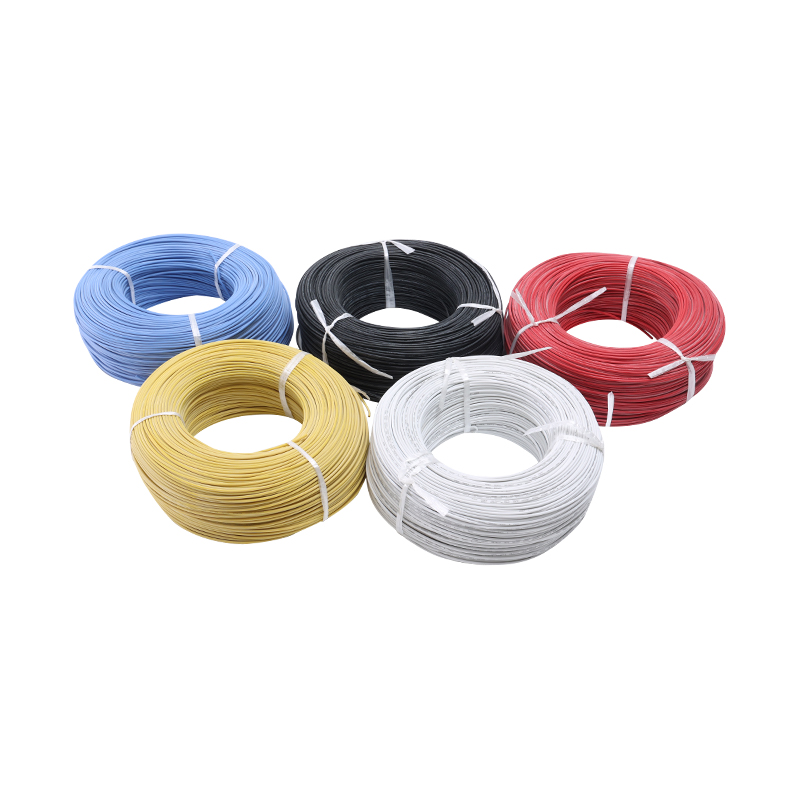

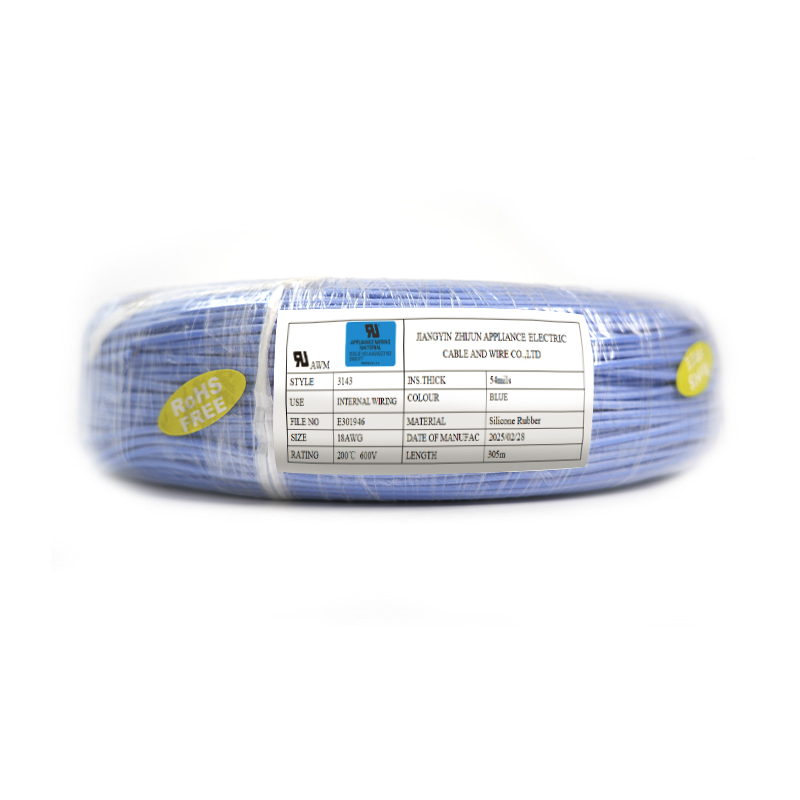

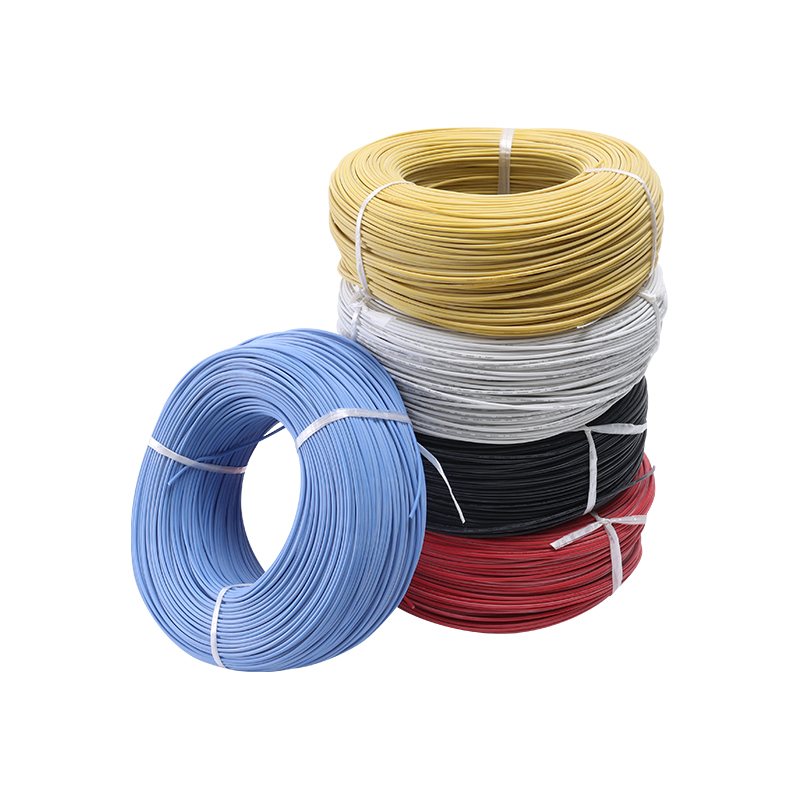

UL3143 Silicone Rubber Insulated Single Core Cable

Designed to meet rigorous demands, the UL3143 silicone rubber insulated single core cable delivers unmatched reliability in high-temperature and high-voltage environments. Rated for 600V and 200°C , this cable ensures safe, efficient operation in applications where standard cables fail. Its premium silicone rubber insulation provides superior flexibility, even in extreme heat, while resisting aging, UV exposure, and chemical corrosion—guaranteeing longevity and consistent performance.Ideal for industrial motors, lighting systems, heating equipment, and automotive engine compartments, this cable excels in scenarios demanding durability and thermal stability. Backed by UL certification, this cable meets stringent safety standards, offering peace of mind for engineers and operators.

Contact Us
PREV：UL3268 Silicone Rubber Insulated WireNEXT：UL3262 Electrical Equipment High Temperature Resistant Wire
Parameter
AWG
NO.		 Spec.
（mm²）		 Conductor Insulation Wire diameter Max
resistance
20℃(Ω/KM)
Structure
（mm）		 Diameter
（mm）		 Nominal
thickness
（mm）		 Min
thickness
（mm）		 Nominal
（mm）		 Tolerance
（mm）
18 0.823 33/0.18 1.2 1.52 1.37 4.25 ±0.30 23.2
7/0.39
16/0.254
17 1.04 21/0.254 1.38 1.52 1.37 4.45 ±0.30 20
40/0.18
32/0.20
16 1.31 7/0.49 1.55 1.52 1.37 4.6 ±0.30 14.6
26/0.254
52/0.18
15 1.65 33/0.254 1.75 1.52 1.37 4.8 ±0.30 11.3
14 2.08 41/0.254 1.95 1.52 1.37 5 ±0.30 8.96
7/0.62
64/0.20
13 2.63 51/0.254 2.19 1.52 1.37 5.25 ±0.30 7.1
12 3.31 65/0.254 2.5 1.52 1.37 5.55 ±0.30 5.64
42/0.32
 Please contact customer service to provide product specifications.
