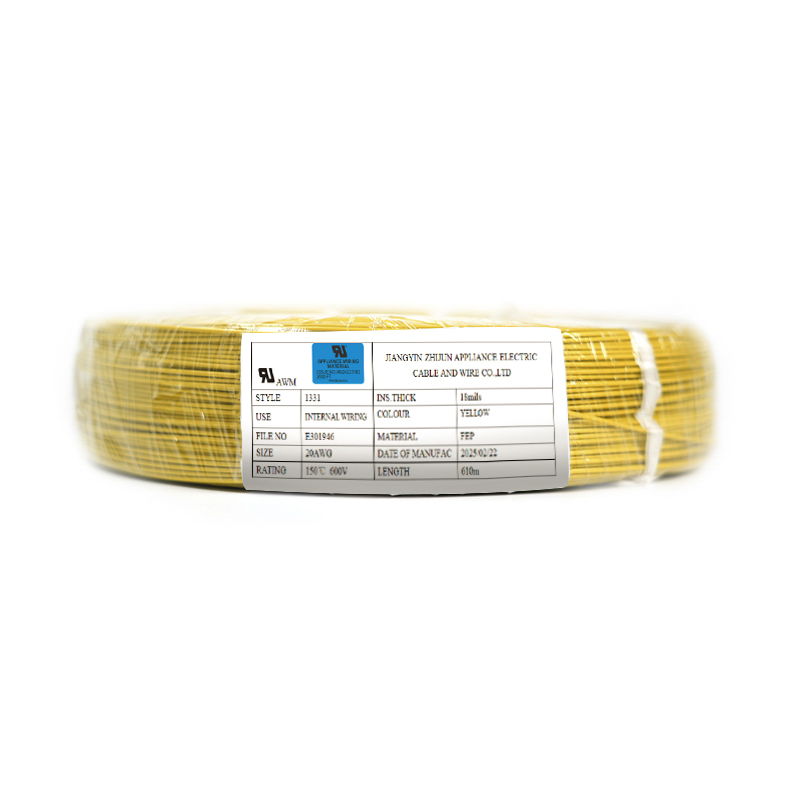

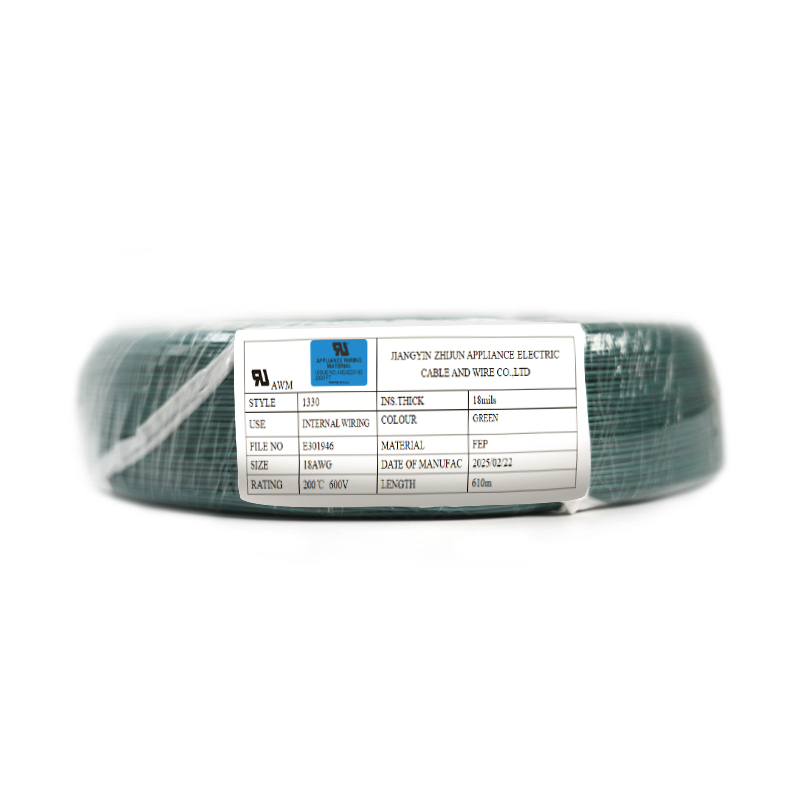

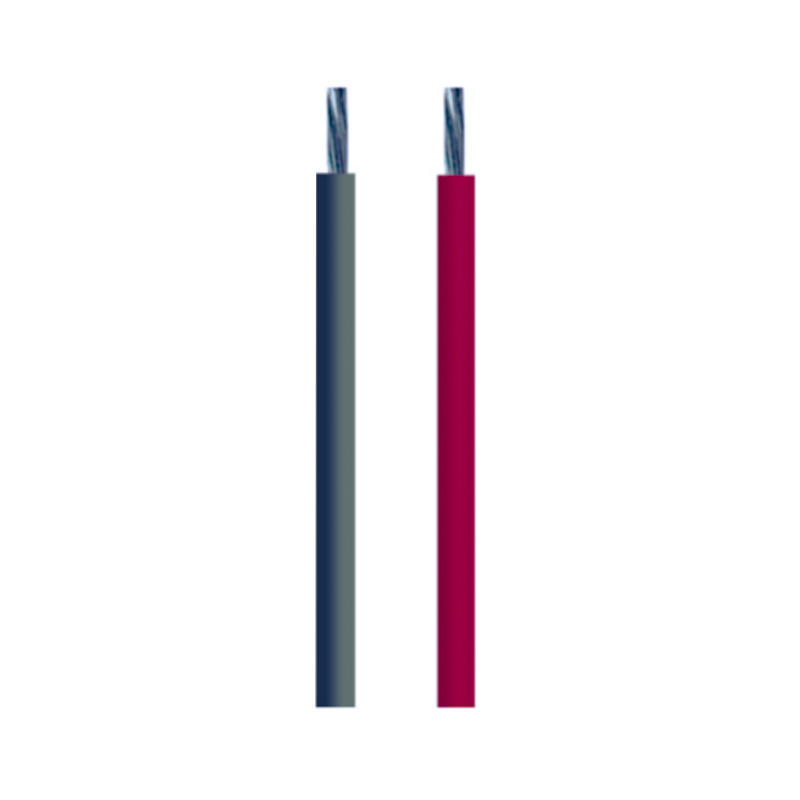

UL1330/1331 Ul Certified Fluoroplastic Wire High Temperature Resistant 200°C

Engineered for demanding environments, our UL1330/1331 certified fluoroplastic wires deliver unmatched reliability in high-temperature applications. With a 600V rating and exceptional thermal resistance—200°C (UL1330) and 150°C (UL1331) —these wires ensure consistent performance in harsh conditions, from industrial machinery to advanced electronics.

Featuring conductors in tin, silver, or nickel-plated copper , they offer tailored solutions for corrosion resistance, conductivity, and durability. The FEP insulation provides superior flame resistance, chemical stability, and flexibility, while meeting stringent UL safety standards. Ideal for electronics, lighting, heating appliances, and automotive systems, these wires excel where ordinary cables fail.

Contact Us
PREV：UL1332/1333 Pep Teflon Polymer Insulated Plastic WireNEXT：No next product
Parameter
AWG
NO.		 Spec.
（mm²）		 Conductor Insulation Wire diameter Max
resistance
20℃(Ω/KM)
Structure
（mm）		 Diameter
（mm）		 Nominal
thickness
（mm）		 Min
thickness
（mm）		 Nominal
（mm）		 Tolerance
（mm）
30 0.05 1/0.254 0.254 0.51 0.46 1.28 ±0.10 361
0.05 7/0.10 0.3 0.51 0.46 1.32 ±0.10 381
28 0.08 1/0.32 0.32 0.51 0.46 1.34 ±0.10 227
0.08 7/0.12 0.36 0.51 0.46 1.38 ±0.10 239
26 0.128 1/0.42 0.42 0.51 0.46 1.44 ±0.10 143
0.128 7/0.15 0.48 0.51 0.46 1.5 ±0.10 150
24 0.21 1/0.52 0.52 0.51 0.46 1.54 ±0.10 89.3
0.21 7/0.20 0.6 0.51 0.46 1.62 ±0.10 94.2
0.21 19/0.12 0.6 0.51 0.46 1.62 ±0.10 94.2
22 0.33 1/0.65 0.65 0.51 0.46 1.67 ±0.10 56.4
0.33 7/0.25 0.75 0.51 0.46 1.77 ±0.10 59.4
0.33 19/0.15 0.75 0.51 0.46 1.77 ±0.10 59.4
20 0.52 1/0.82 0.82 0.51 0.46 1.84 ±0.10 35.2
0.52 7/0.32 0.93 0.51 0.46 1.95 ±0.10 36.7
0.52 19/0.19 0.95 0.51 0.46 1.97 ±0.10 36.7
18 0.823 19/0.235 1.18 0.51 0.46 2.2 ±0.10 23.2
17 1.04 19/0.265 1.33 0.51 0.46 2.35 ±0.10 18.3
16 1.34 19/0.30 1.5 0.51 0.46 2.52 ±0.10 14.6
15 1.65 19/0.33 1.65 0.51 0.46 2.67 ±0.10 11.3
14 2.08 19/0.375 1.88 0.51 0.46 2.9 ±0.10 8.96
13 2.63 19/0.42 2.1 0.51 0.46 3.12 ±0.10 7.1
12 3.31 19/0.475 2.38 0.51 0.46 3.4 ±0.10 5.64
11 4.19 19/0.53 2.65 0.51 0.46 3.67 ±0.10 4.48
10 5.24 37/0.425 2.98 0.51 0.46 4 ±0.10 3.546
 Please contact customer service to provide product specifications.
Related Products
About Us
Jiangyin Zhijun Appliance Electric Cable and Wire Co.,ltd
The company's factory area of nearly 20000 square meters, more than 200 employees, technical team 30 people, with advanced production management equipment and testing instruments, advanced production management system, rigorous quality assurance system and traceability system. Our 20 years focus on research and development, production of silicone rubber series, PVC series, radiation crosslinking series, Teflon series and other kinds of high temperature resistance wire and small home appliances internal wiring harness assembly and molding, widely used in electronics, electrical appliances, lighting, motor, automotive and other industries.

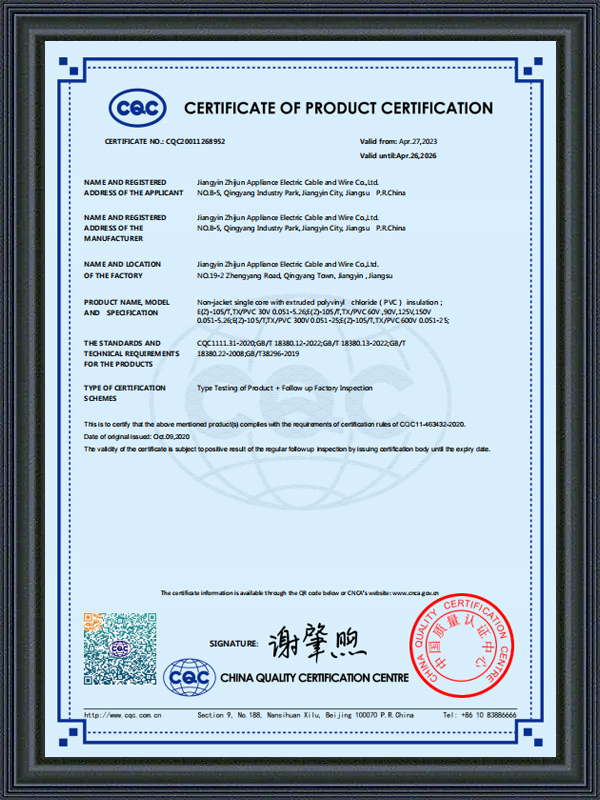

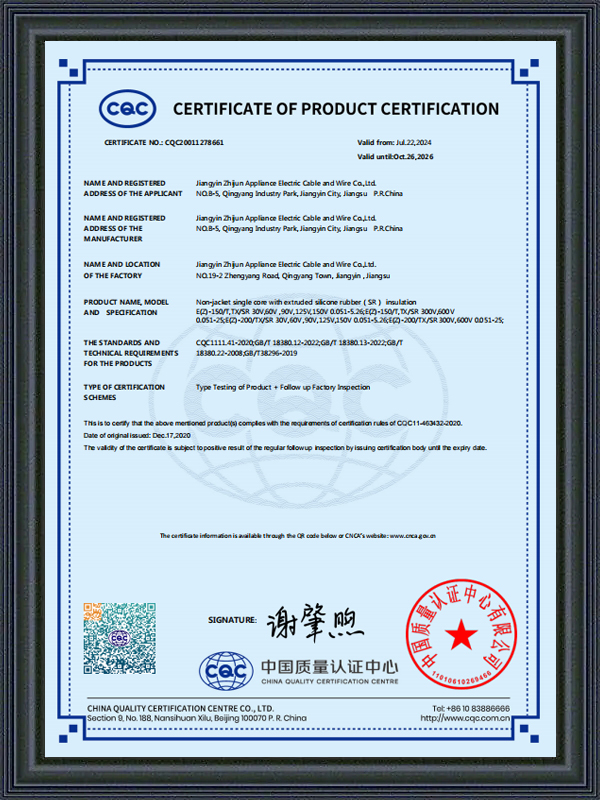

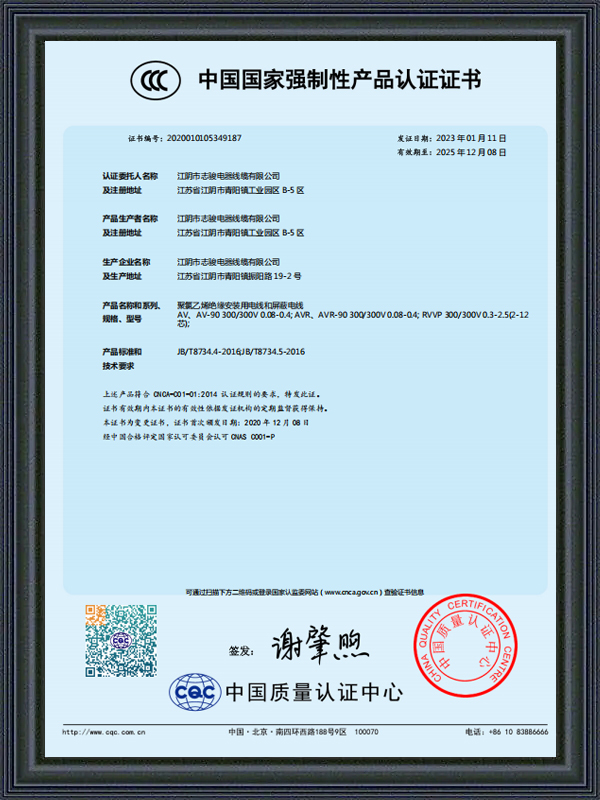

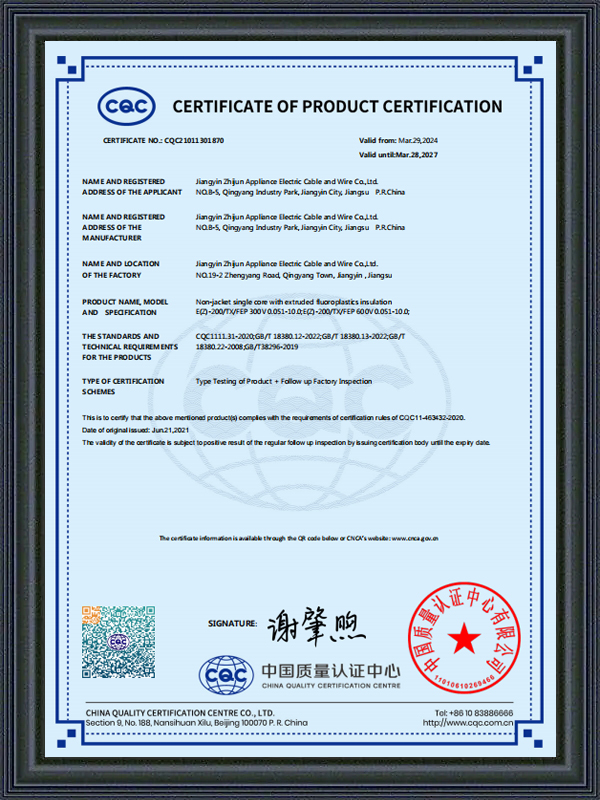

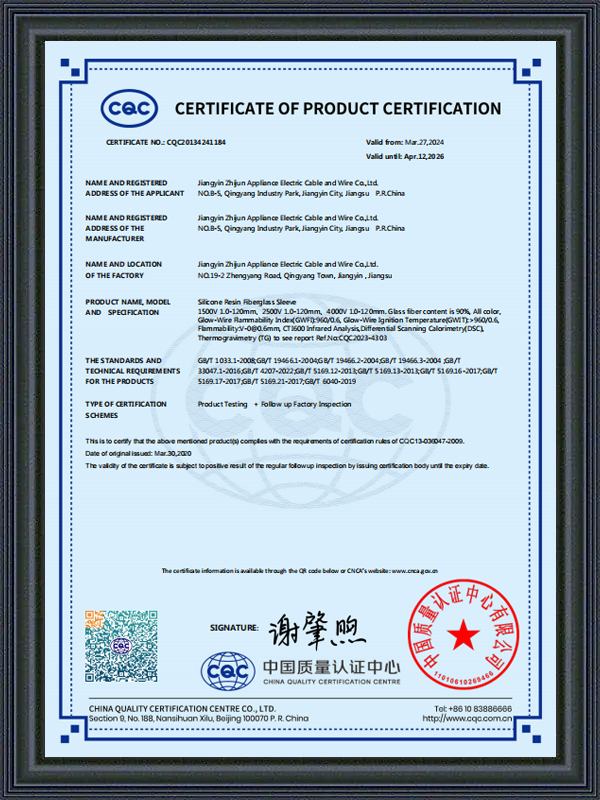

Certificate Of Honor
