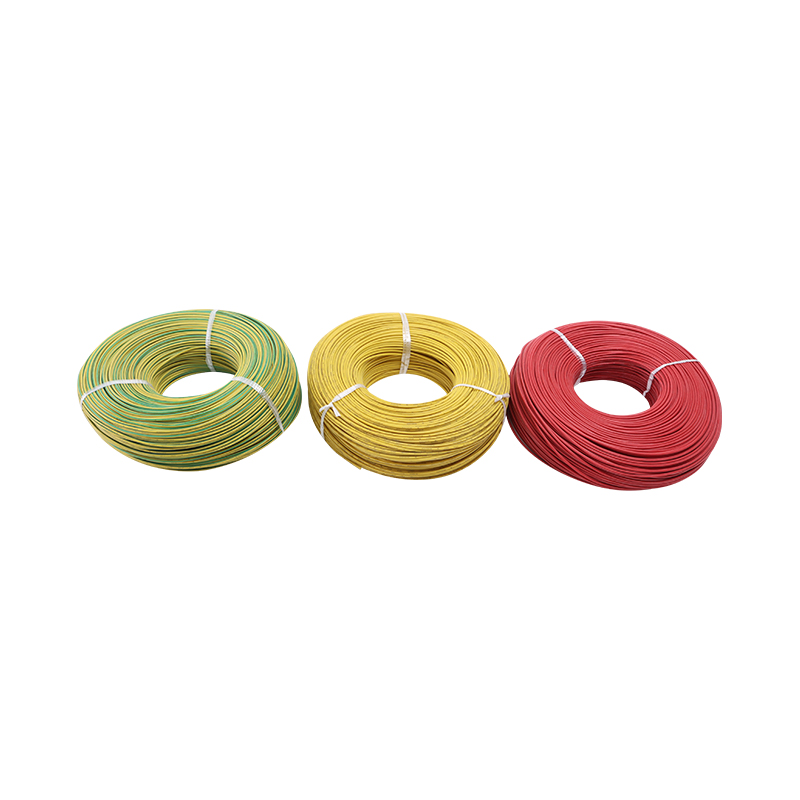

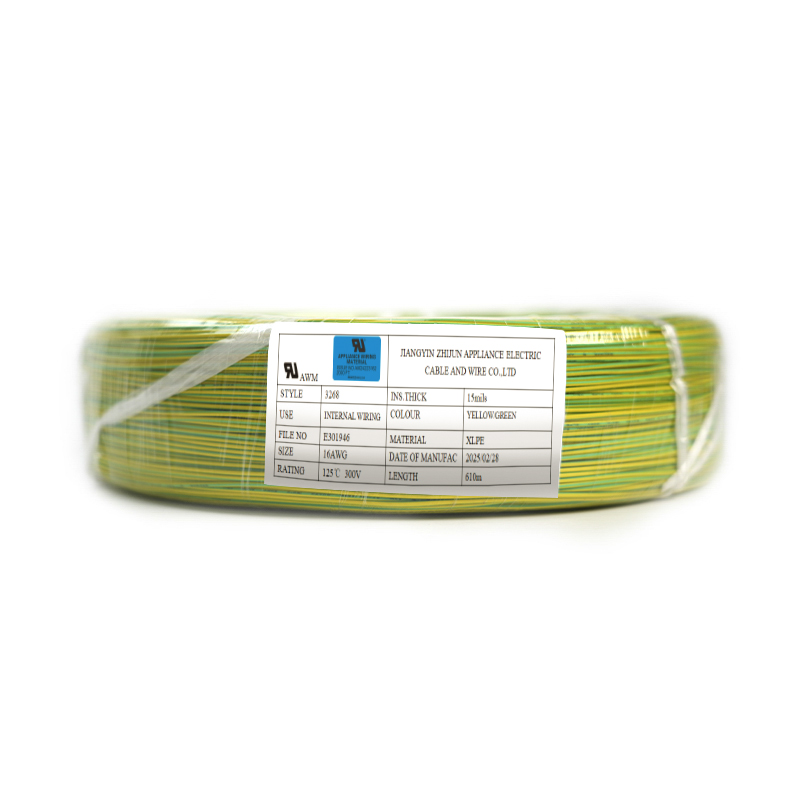

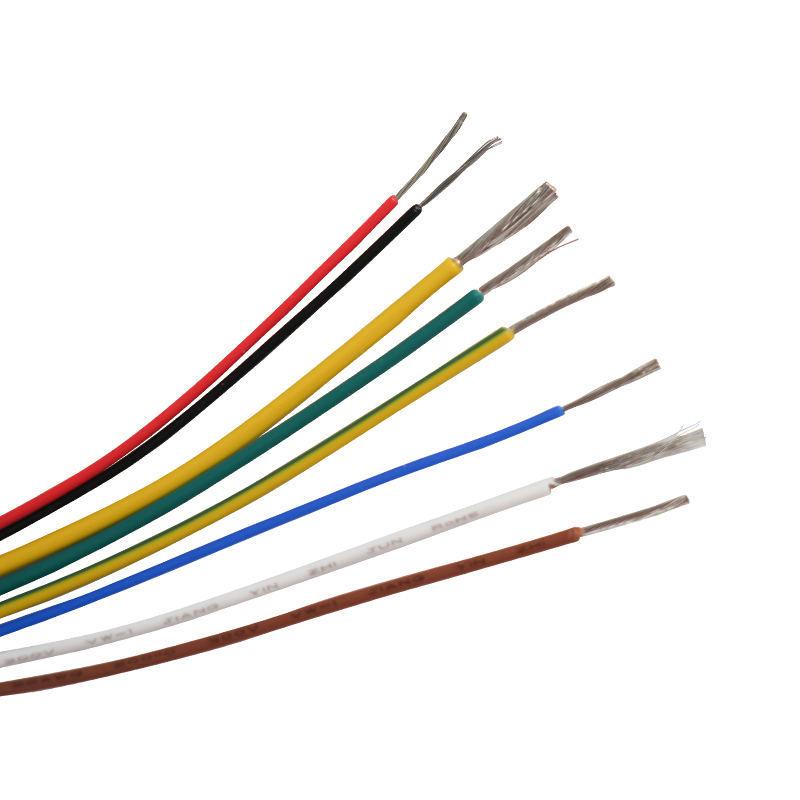

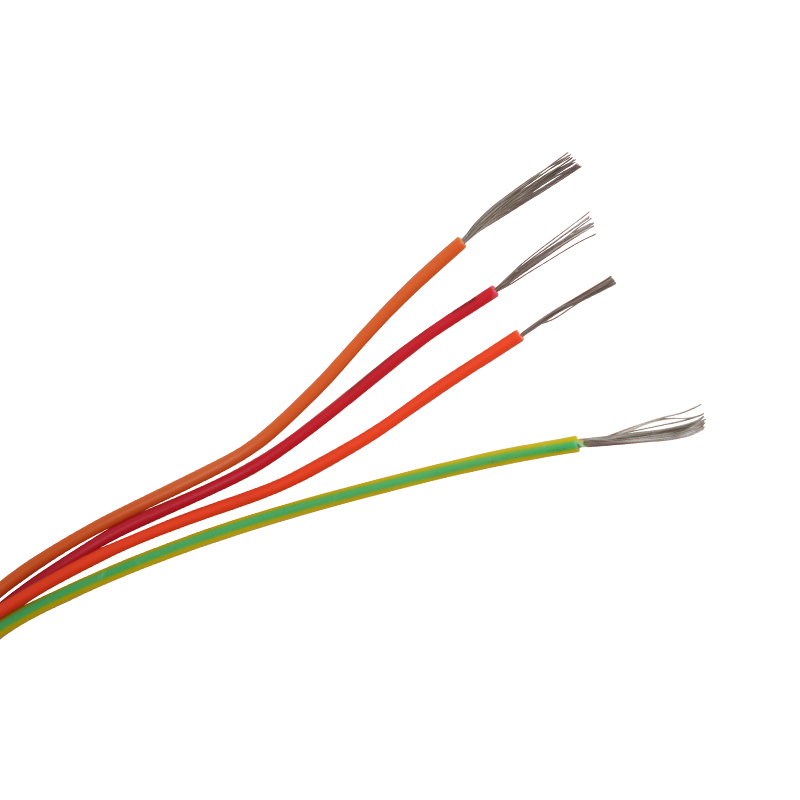

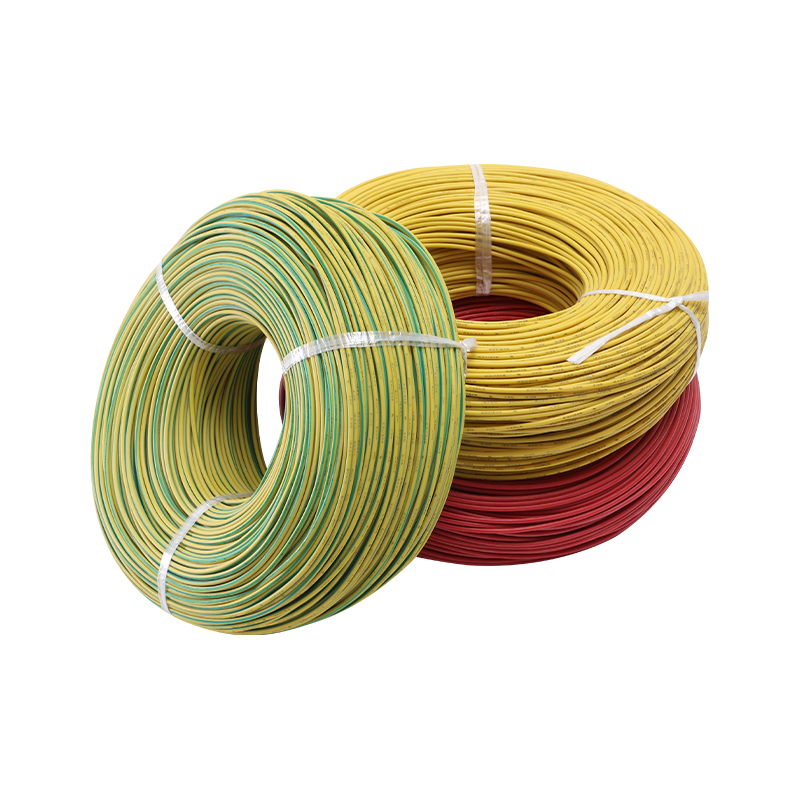

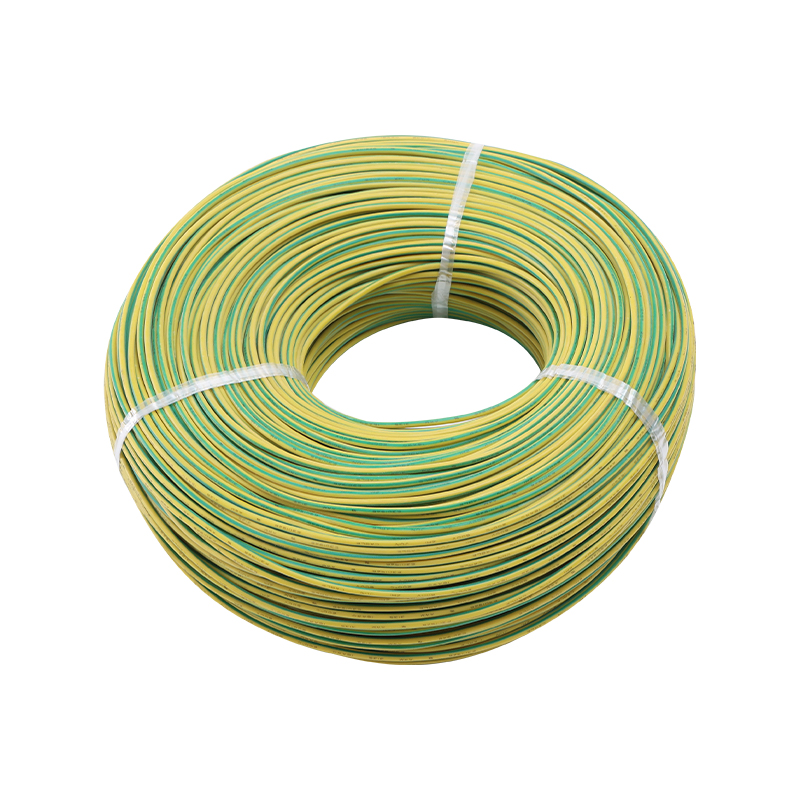

UL3268 Silicone Rubber Insulated Wire

The UL3268 Silicone Rubber Insulated Wire is designed for high-performance electrical applications in extreme environments. With a rated voltage of 600V and a temperature resistance of up to 200°C, it provides exceptional safety, durability, and flexibility for demanding conditions.

This wire features a high-quality conductor made from bare copper, tinned copper, silver-plated, or nickel-plated copper, ensuring excellent conductivity and corrosion resistance. The silicone rubber insulation enhances flexibility, making it easy to install even in confined spaces.

Ideal for use in electronics, appliances, lighting, and other electrical products, this wire is perfect for high-temperature applications where standard wires may fail. Whether in industrial machinery, automotive systems, or specialized equipment, UL3268 ensures reliable and long-lasting performance.

Choose UL3268 for a safe, efficient, and high-quality wiring solution that meets strict industry standards and supports your most demanding electrical projects.

Contact Us
Parameter
AWG
NO.
Spec.
(mm²)
Conductor Insulation Wire diameter Max
resistance
20℃(Ω/KM)
Structure
(mm)
Diameter
(mm)
Nominal
thickness
(mm)
Min
thickness
(mm)
Nominal
(mm)
Tolerance
(mm)
18 0.823 7/0.3933/0.18 1.2 0.76 0.69 2.75 ±0.20 23.2
16 1.31 7/0.4952/0.18 1.47 0.76 0.69 3 ±0.20 14.6
14 2.08 64/0.20 1.9 0.76 0.69 3.45 ±0.25 8.96
7/0.6241/0.254
12 3.31 19/0.4942/0.32 2.5 0.76 0.69 4.05 ±0.25 5.64
 Please contact customer service to provide product specifications.
About Us
Jiangyin Zhijun Appliance Electric Cable and Wire Co.,ltd
The company's factory area of nearly 20000 square meters, more than 200 employees, technical team 30 people, with advanced production management equipment and testing instruments, advanced production management system, rigorous quality assurance system and traceability system. Our 20 years focus on research and development, production of silicone rubber series, PVC series, radiation crosslinking series, Teflon series and other kinds of high temperature resistance wire and small home appliances internal wiring harness assembly and molding, widely used in electronics, electrical appliances, lighting, motor, automotive and other industries.
